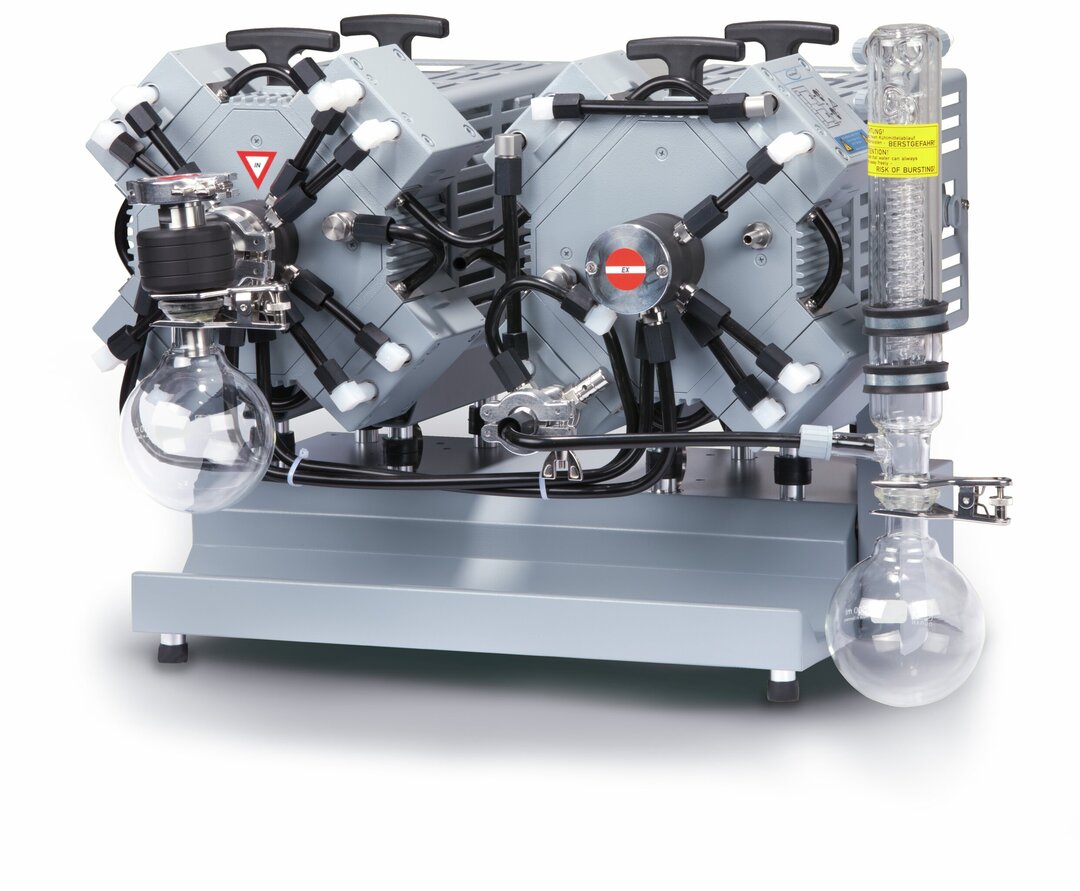

MV 10C EX +AK+EKChemistry diaphragm pump
Overview
- outstanding chemical resistance and superior vapor tolerance
- flame proof motor with integrated, self-locking overload and excess temperature protection for direct 230V / 50Hz single phase power supply. No need for any additional and specific overcurrent protection device
- overpressure safety relief valves internally and at outlet
- safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage
- separator AK and emission condenser EK for pump protection and solvent recovery
Ultimate vacuum
2 mbar
Ultimate vacuum with gas ballast
10 mbar
Max. pumping speed 50 Hz
8.1 m3/h
Chemistry diaphragm pump in action
ATEX chemistry vacuum systems are ready for use for applications with large amounts of condensable vapors due to optimally configured accessories. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The separator at the inlet (AK) retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery. Included in delivery is a separate gas ballast connection part for use with inert gas.
Technical data and graphs
| Max. pumping speed 50 Hz | 8.1 m3/h | |
| Ultimate vacuum | 2 mbar / 1.5 torr | |
| Ultimate vacuum with gas ballast | 10 mbar / 7.5 torr | |
| Number of heads | 8 | |
| Number of stages | 4 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 1.1 bar | |
| Inlet connection | small flange KF DN 25 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | 0.5 kW | |
| Rated motor speed at 50/60 Hz | 1500 min-1 | |
| Protection class IEC 60529 | IP 54 | |
| Dimension L in mm | 649 mm | |
| Dimension B in mm | 525 mm | |
| Dimension H in mm | 452 mm | |
| Weight | 64 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 52 dBA | |
| ATEX conformity | Pumping chamber (pumped gases): II 2G Ex h IIC T3 Gb X, Environment with inert purge gas: II 2G Ex h IIB T4 Gb X, Environment without inert purge gas: II 3G Ex h IIB T4 Gc X, Motor: II 2G Ex db IIB T4 Gb | |
| NRTL certification | No | |
| Items supplied | Pumping unit completely mounted with inlet separator and emission condenser, ready for use, with manual, 2 m cable without plug at each of the two motors. Shatter and shock protection for glass parts are to be provided by the customer. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50 Hz |
