CVC 3000 detectVacuum controller bench-top device
Overview
- detect function for independent vapor pressure detection - time saving for other tasks
- compact unit with chemically resistant vacuum valve and common laboratory hose connections - immediately ready for use
- the vacuum measuring is integrated within the valve block - direct connection of the CVC 3000 detect between pump and vacuum application
- integrated venting valve - simple pressure balance or ventilation with inert gas at the end of the process
- non-return valve - no interference of parallel applications at a common vacuum source

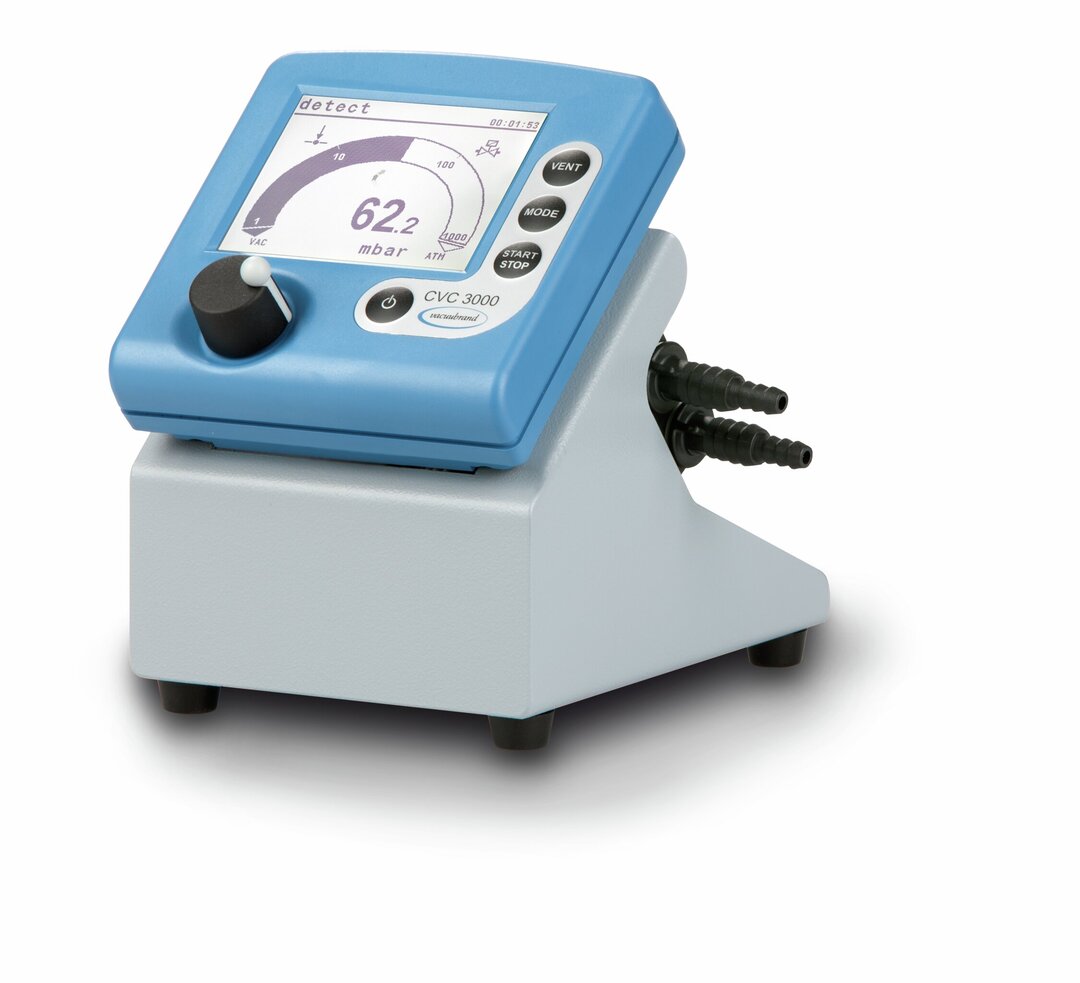

Vacuum controller bench-top device in action
The CVC 3000 detect is a ready to use two-set-point vacuum controller - available both as bench-top device and as a unit designed for attaching to a lab scaffold. It consists of the vacuum controller CVC 3000 with integrated ceramic vacuum sensor and venting valve that forms together with a non-return valve and the chemically resistant solenoid valve a very compact and easy to install unit for vacuum control. The electronic vacuum control increases the process efficiency and decisively improves the solvent recovery for existing vacuum sources like oil-free vacuum pumps or vacuum networks. In the “detect” mode the controller does approach and detect the boiling pressure and switches to the two-point vacuum control mode by itself. Manual settings are possible at any time during current operation. Many vacuum processes are carried out uncontrolled and thus often inefficient, and burdensome for environment and material. Controlled vacuum increases the solvent recovery rate with a rotary evaporator and so protects the environment. The vacuum pump is less loaded by the solvents, therefore the service intervals for valves and diaphragms are extended. The independent boiling point recognition also with solvent mixtures saves the user’s time and in addition avoids boiling retardation. With a CVC 3000 detect processes become reproducible which is particularly necessary in fields such as production and quality assurance.
Technical data and graphs
| Upper measuring limit in mbar/hPa | 1080 mbar | |
| Upper measuring limit in torr | 810 torr | |
| Lower measuring limit in mbar/hPa | 0.1 | |
| Lower measuring limit in torr | 0.1 torr | |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr | |
| Vacuum sensor | Integr. | |
| Temperature coefficient | < 0.07 mbar/hPa/0.05 torr /K mbar/hPa/torr /K | |
| Vacum connection | Hose nozzle DN 6/10 mm | |
| Venting valve | Integrated, hose nozzle DN 4-5 mm | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Max. media temperature for continuous operation | 40 °C | |
| Max. media temperature short term | 80 °C | |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Protection class IEC 60529 | IP 20 | |
| Protection class UL50E | Type 1 | |
| Protection class front side IEC 60529 | IP 42 | |
| Dimension L in mm | 181 mm | |
| Dimension B in mm | 162 mm | |
| Dimension H in mm | 174 mm | |
| Weight | 1.5 kg | |
| Max. current for VACUU BUS (24V DC) | 4 A | |
| Cable length connection in m | 2 m | |
| Interface | RS 232C | |
| NRTL certification | Yes | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| Items supplied | Vacuum controller CVC 3000 detect bench-top device, complete with vacuum solenoid valve, non-return valve, integrated ceramic diaphragm vacuum sensor and venting valve. With power supply, ready to use, with manual |
