Counting chambers, Bürker pattern, BLAUBRAND®, double ruling
| Cat.-No. | spring clips |
|---|---|
| 718905 | without |
| 718920 | with |
| Pack of | Price/Pack ₹ | |||
|---|---|---|---|---|
Product Detail
Manufactured according to DIN 12 847, including 2 haemacytometer cover glasses.

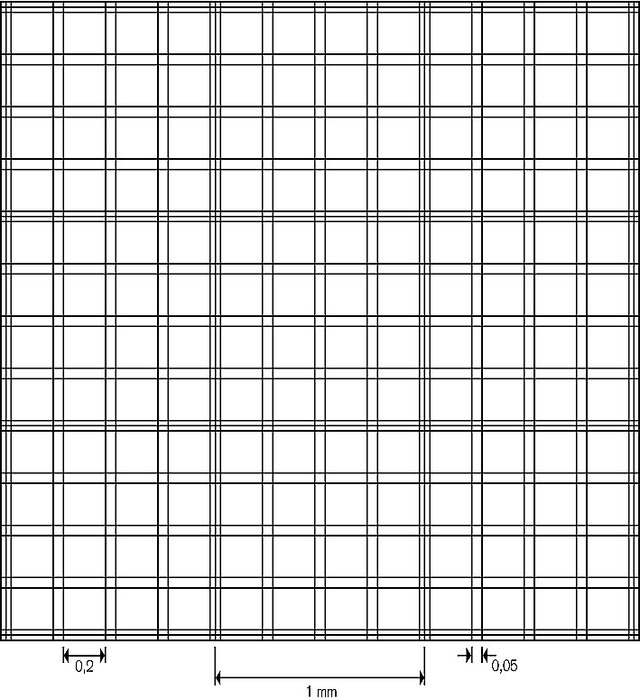

The ruling shows 9 large squares of 1 mm² each. These are used for counting leucocytes.
Each large square is subdivided by double lines (0.05 mm apart) into 16 group squares with 0.2 mm sides. The group squares correspond in size to the Neubauer counting chamber, but have no further subdivisions. They are used for counting thrombocytes and erythrocytes. The double lines from mini squares with an area of 0.0025 mm².
Resources
| Cat.-No. | spring clips |
|---|---|
| 718905 | without |
| 718920 | with |
| Pack of | Price/Pack ₹ | |||
|---|---|---|---|---|
Product Detail
Manufactured according to DIN 12 847, including 2 haemacytometer cover glasses.
The ruling shows 9 large squares of 1 mm² each. These are used for counting leucocytes.
Each large square is subdivided by double lines (0.05 mm apart) into 16 group squares with 0.2 mm sides. The group squares correspond in size to the Neubauer counting chamber, but have no further subdivisions. They are used for counting thrombocytes and erythrocytes. The double lines from mini squares with an area of 0.0025 mm².
