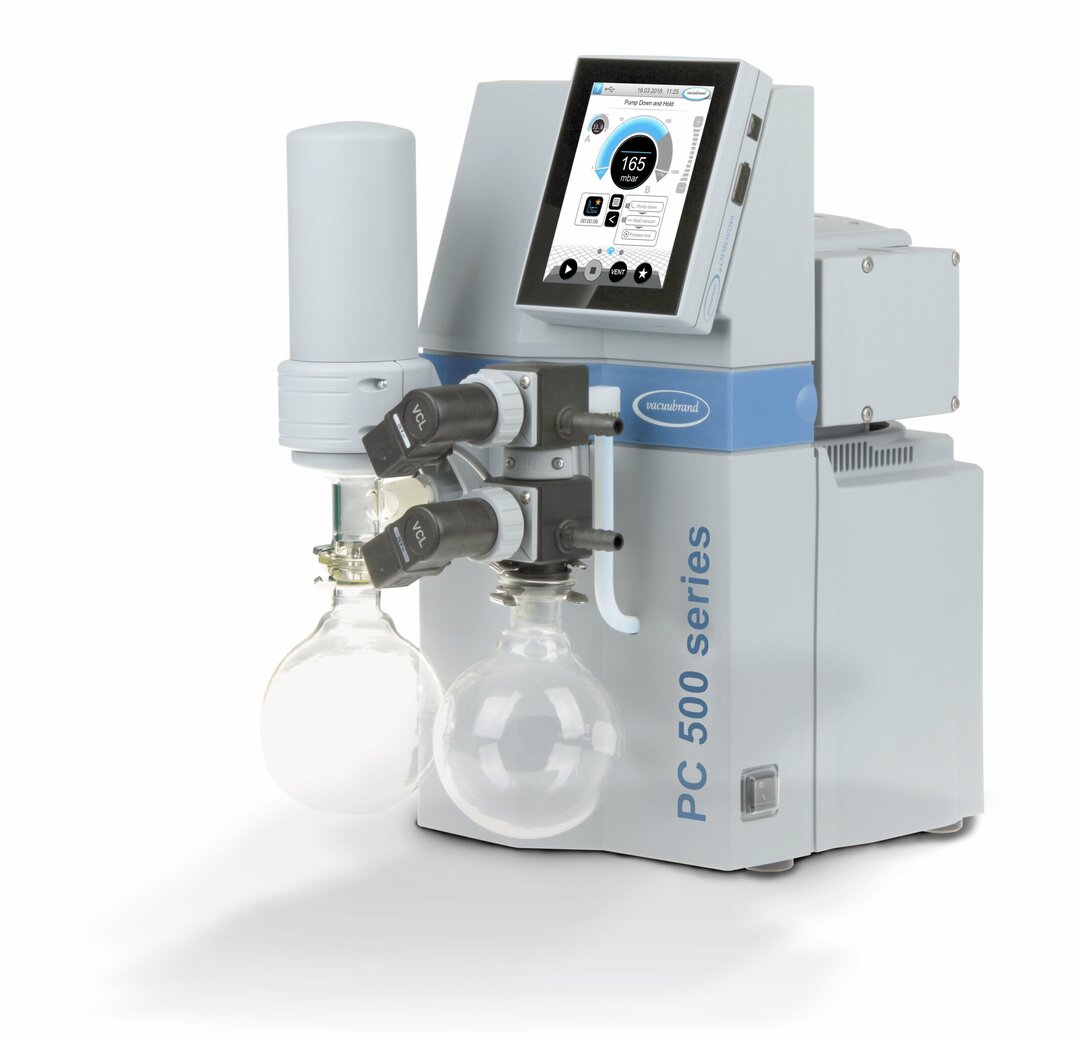

PC 520 selectChemistry pumping unit
Overview
- VACUU·SELECT vacuum controller with graphical user interface simplifies work in the laboratory
- predefined applications save time and give reproducible results
- easy-to-use application editor allows own process sequences
- powerful vacuum pump with excellent chemical and condensate compatibility
- PC 520 select allow simultaneous operation of two independent applications with electronic vacuum control
Ultimate vacuum
7 mbar
Ultimate vacuum with gas ballast
12 mbar
Max. pumping speed 50 Hz
2 m3/h
Chemistry pumping unit in action
This chemistry vacuum pumping unit is an economical, compact solution for simultaneous operation of two electronically controlled vacuum applications with one single pump. Based on our popular MZ 2C NT two-stage chemistry diaphragm pump, the PC 520 select is frequently used for medium-sized vacuum applications involving common solvents. Both vacuum ports have independent solenoid valves for electronic vacuum control, and check valves to protect against cross contamination and interference. With an intuitive, application-based interface, the VACUU·SELECT controller offers predefined vacuum processes for all common laboratory applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, it detects the boiling pressure and switches to two point control to hold the pressure stable when a boiling point is detected. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.
Technical data and graphs
| Max. pumping speed 50 Hz | 2 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 1.4 cfm | Select diagram |
| Ultimate vacuum | 7 mbar / 5 torr | |
| Ultimate vacuum with gas ballast | 12 mbar / 9 torr | |
| Number of heads | 2 | |
| Number of stages | 2 | |
| Vacuum controller | VACUU·SELECT | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Inlet connection | 2 x hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | 0.18 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 20 | |
| Dimension L in mm | 435 mm | |
| Dimension B in mm | 272 mm | |
| Dimension H in mm | 457 mm | |
| Weight | 18.4 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | No | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50-60 Hz | |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
