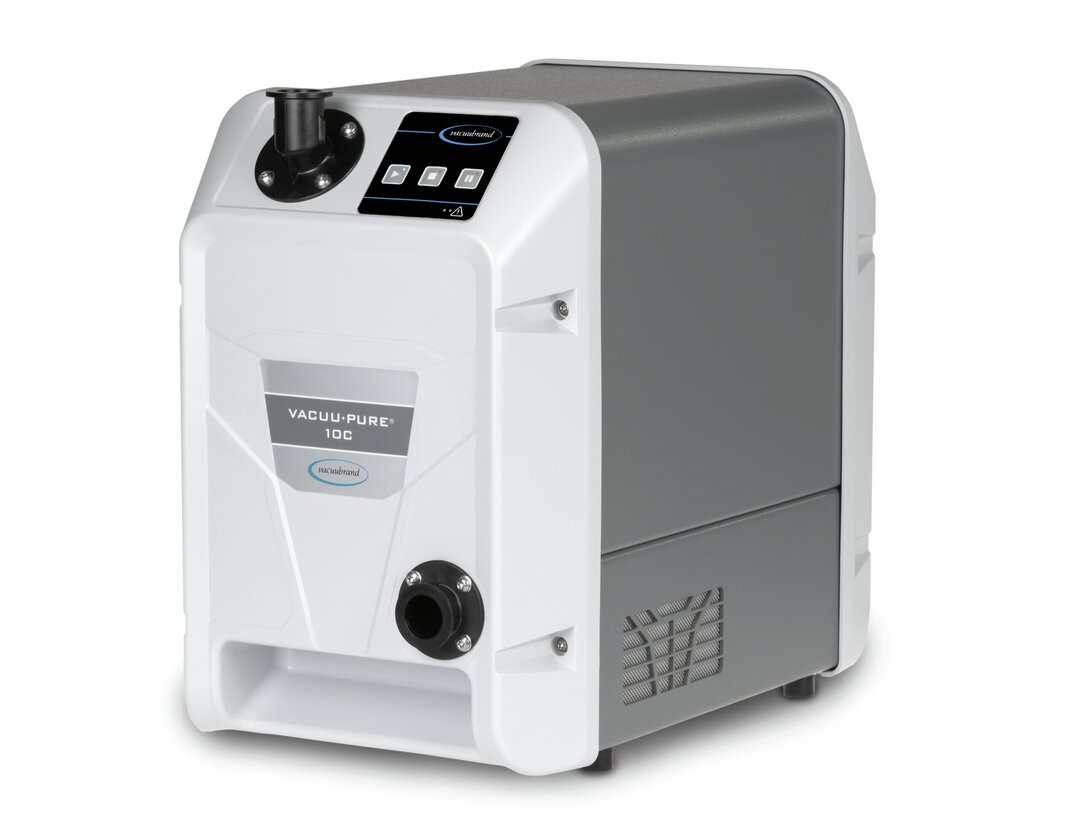

VACUU·PURE 10CScrew pump

Overview

  • 10-3 mbar vacuum range
  • 100% oil-free
  • Chemically resistant
  • No wear parts

Ultimate vacuum

5 x 10-3 mbar

Max. pumping speed 50 Hz

9 m3/h

SKU
20751007
Upon Request ₹999,999.99

Inquire

Screw pump in action

The dry screw pump VACUU·PURE® 10C reliably delivers the benefits of oil-free vacuum technology in the pressure range of 10-3 mbar. The new vacuum pump combines three important benefits for the user: 100% oil-free, chemically resistant, and no wear parts. VACUU·PURE 10C is ideally suited for clean processes and the production of pure products. The screw pump is especially designed for processes in the vacuum range down to 10-3 mbar, however unlike other fine vacuum technologies it can be used across the entire pressure range from atmospheric pressure to its ultimate vacuum. At the same time, aggressive gases and vapors can be pumped without any worries because of the high chemical resistance. The use of a cold trap is no longer necessary in the majority of applications. VACUU·PURE easily handles high vapor loads through its extraordinary condensate compatibility. Thanks to this capability, a gas ballast is unnecessary, avoiding associated disadvantages like the reduction in pumping speed and an increase in noise levels. The integrated regeneration mode enables rapid drying of the pump at the end of the process. This allows sample throughput to be increased significantly as compared to other pump technologies.


Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz 9 m3/h Select diagram
Ultimate vacuum 5 x 10-3 mbar / 3.8 x 10-3 torr (at 1013 mbar ambient pressure)
Vacuum controller without controller
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 15 mbar above atmospheric pressure bar
Inlet connection small flange KF DN 25
Outlet connection small flange KF DN 25
Rated motor power 0.7 kW
Protection class IEC 60529 IP 20
Dimension L in mm 507 mm
Dimension B in mm 269 mm
Dimension H in mm 413 mm
Weight 21.5 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 52 dBA
NRTL certification Yes

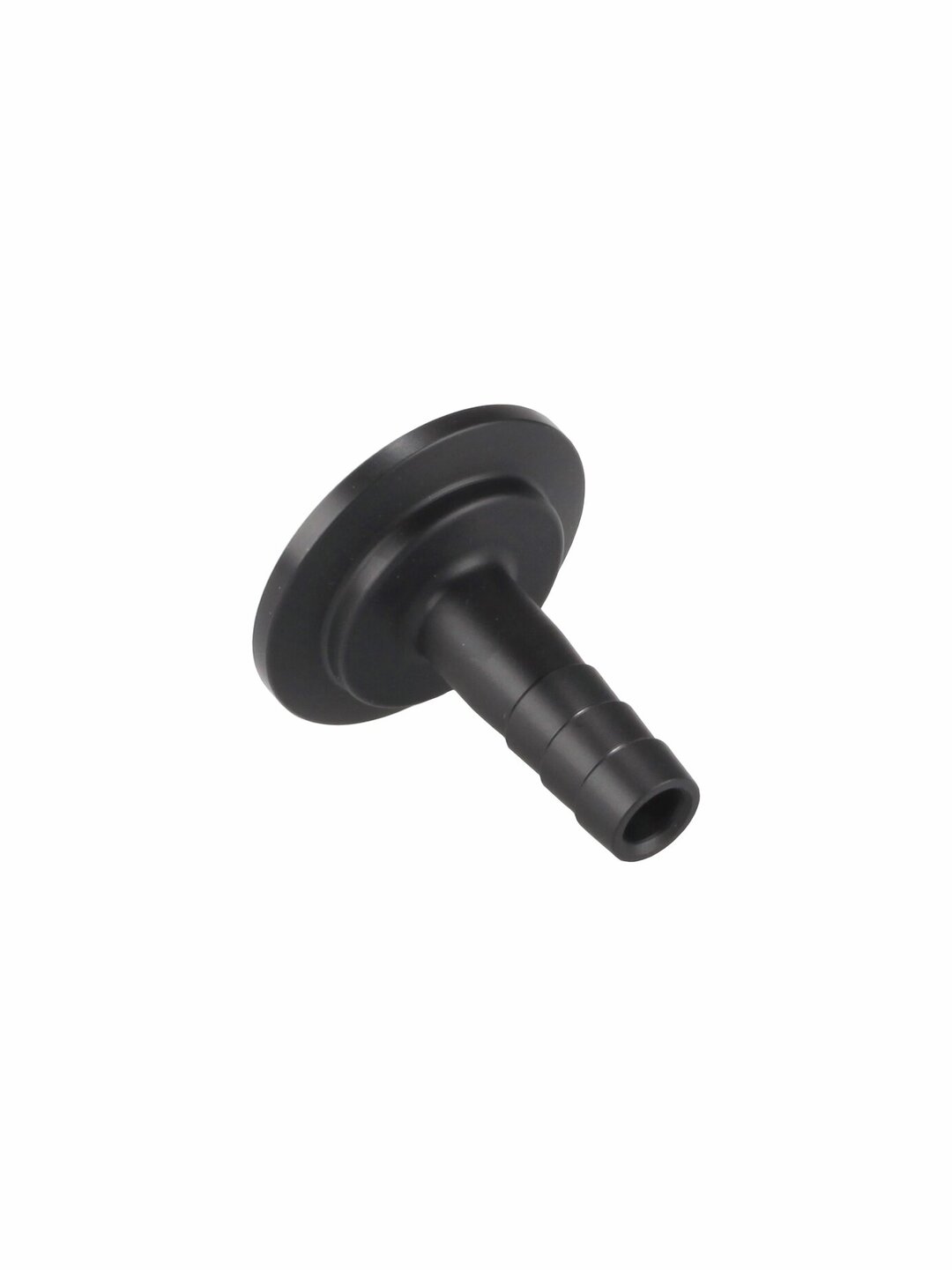

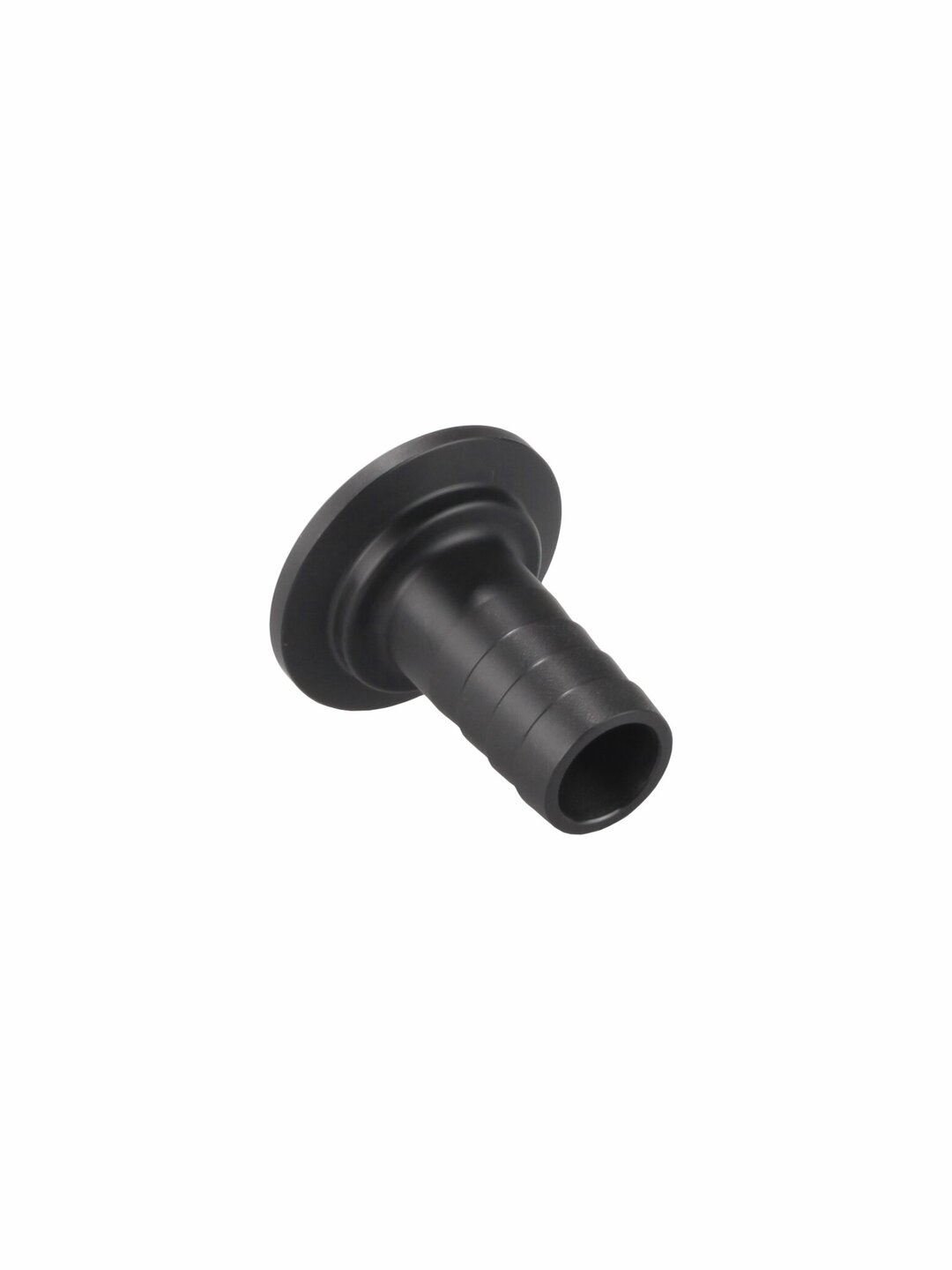

Items supplied Pump completely mounted, ready for use, connection with small flange KF DN 25 (2x centering and clamping rings included), with manual. To establish a hose nozzle connection, suitable KF flanges with hose nozzle are available for order.
Rated mains voltage range 1 100-230 V
Mains frequency 1 50-60 Hz
Interface VACUU·BUS: Modbus RTU

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (100 l volume)

Downloads

Screw pump VACUU·PURE® 10C, chemically resistantcertification (NRTL): C/US,100-230 V, 50/60 Hz, IN power cord
VACUU·PURE 10C Screw pump
Manual vacuum pump
Manual PDF 12.8 MB 12.8 MB 12.7 MB 12.8 MB 12.7 MB 12.7 MB 12.7 MB 12.8 MB 12.7 MB 12.7 MB 12.7 MB 12.7 MB 12.7 MB 12.7 MB 12.6 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual interface
Manual PDF 1.3 MB 1.2 MB
Download Download
Brochure
Brochure PDF 1.1 MB 1.1 MB
Download Download

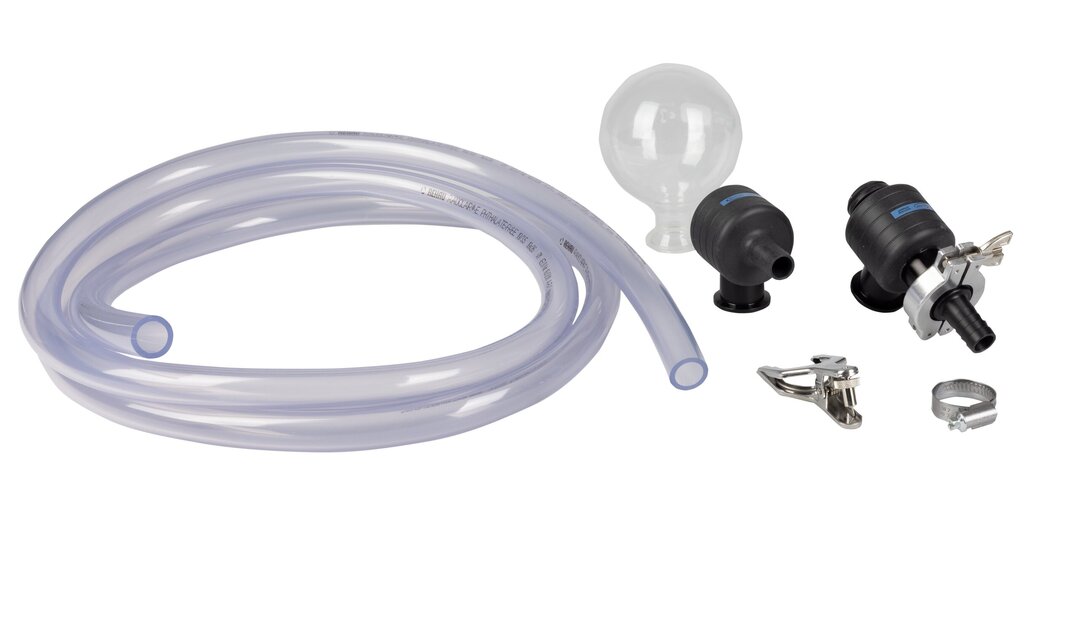

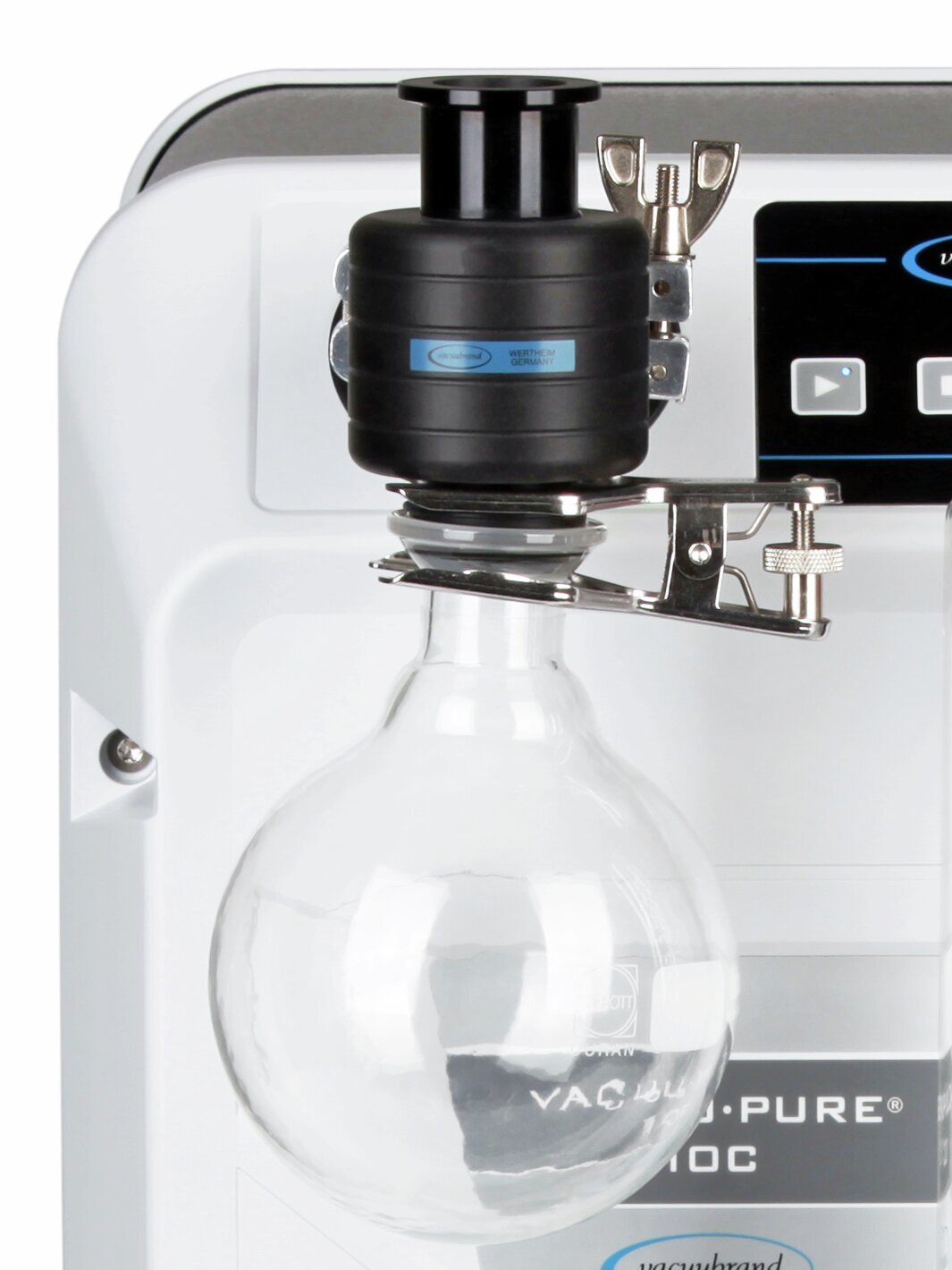

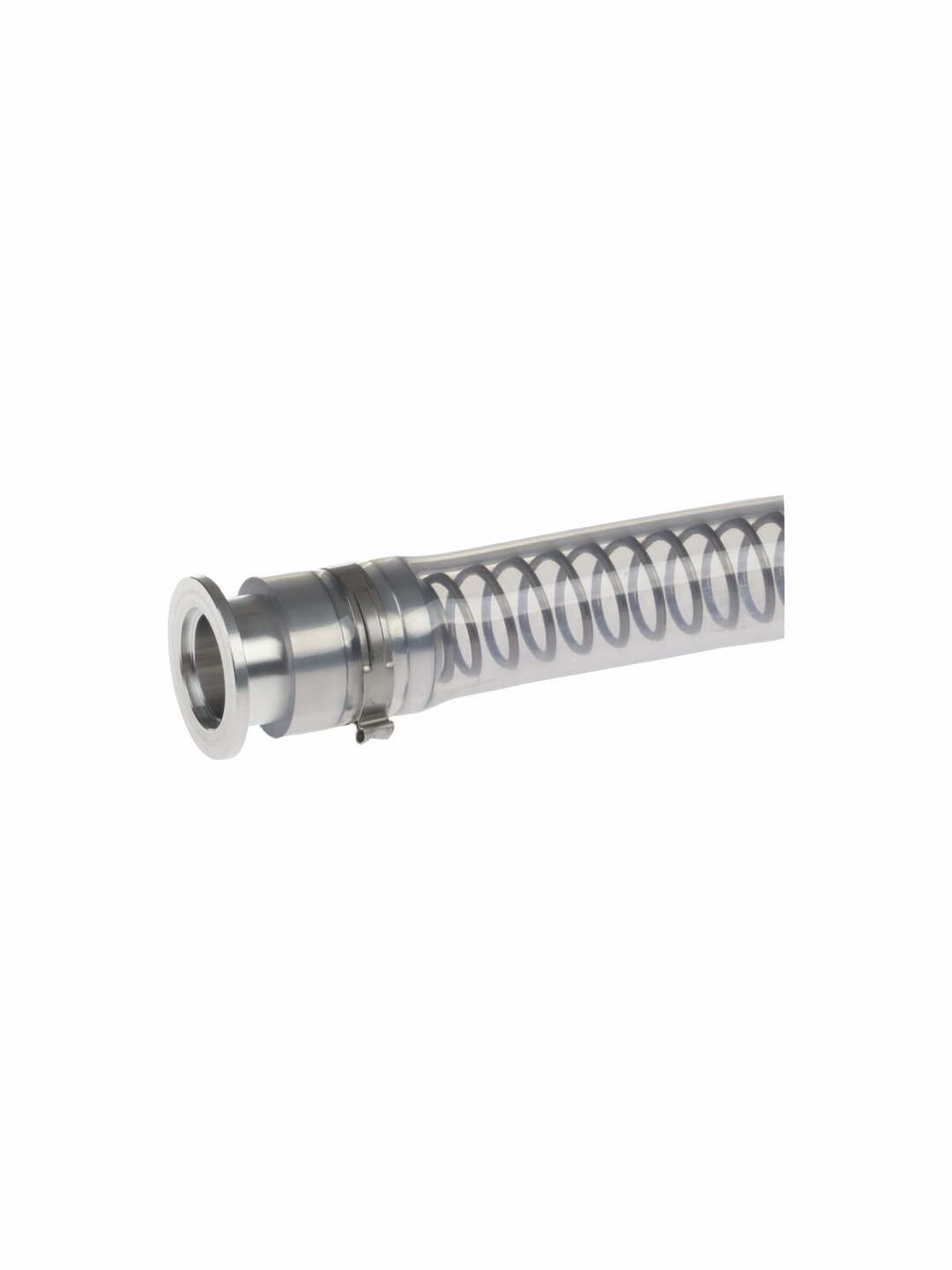

Optional accessories

Application examples

Fore_vacuum_for_turbomolecular_pumps
Fore vacuum for turbomolecular pumps
Oil-free_vacuum_for_reactors_and_synthesis_applications
Oil-free vacuum for reactors and synthesis applications
Schlenk_Line
Schlenk Line
Vacuum_drying_oven
Vacuum drying oven
Fine_vacuum_distillation
Fine vacuum distillation
Lyophilisation_(freeze_drying)
Lyophilisation (freeze drying)
