AK 500 / KF DN 25 VACUU·PUREInlet separator AK with round bottom flask 500 ml, with connections KF DN 25 and hose nozzle DN 15 mm, Leakage rate 10^-4 mbar l/s
Overview
- for VACUU·PURE Screw Pumps
- direct mounting at the inlet, compact and leak-tight
- high conductance
- direct visibility of condensate through the coated round bottom flask
- easy draining of condensate
SKU
20751802

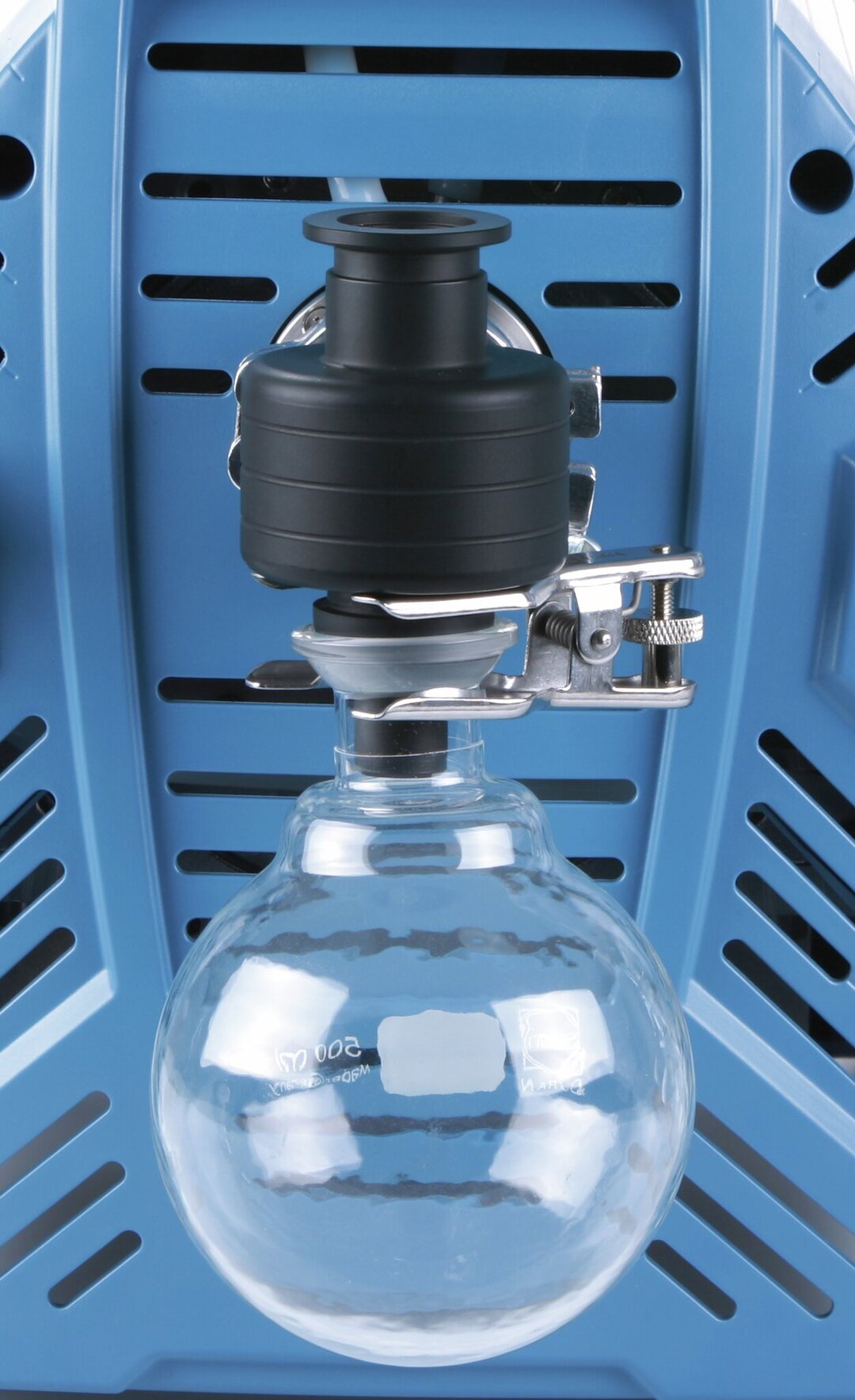

Inlet separator AK with round bottom flask 500 ml, with connections KF DN 25 and hose nozzle DN 15 mm, Leakage rate 10^-4 mbar l/s in action
Inlet separator AK with round bottom flask 500 ml, with KF DN 25, for VACUU·PURE
Inlet separator for VACUU·PURE Screw pumps. Inlet with small flange KF DN 25 and hose nozzle DN 15 mm. Separators (AK) protect the vacuum pump at the inlet from particles and liquid droplets. Separators catchpot made of glas with good chemical resistance.Technical data and graphs
| Ambient temp., upper limit, in °C | 40 °C | |
| Ambient temp., lower limit, in °C | 10 °C | |
| Dimension L in mm | 106 mm | |
| Dimension B in mm | 121 mm | |
| Dimension H in mm | 275 mm | |
| Outlet connection | small flange KF DN 25 | |
| Inlet connection | small flange KF DN 25 | |
| For VACUUBRAND pumps | ME 16C NT, MD 12C NT, MV 10C NT | |
| Volume catchpot | 500 ml | |
| Items supplied | Upgrade kit inlet seperator with connections KF DN 25 with high chemical resistance |
