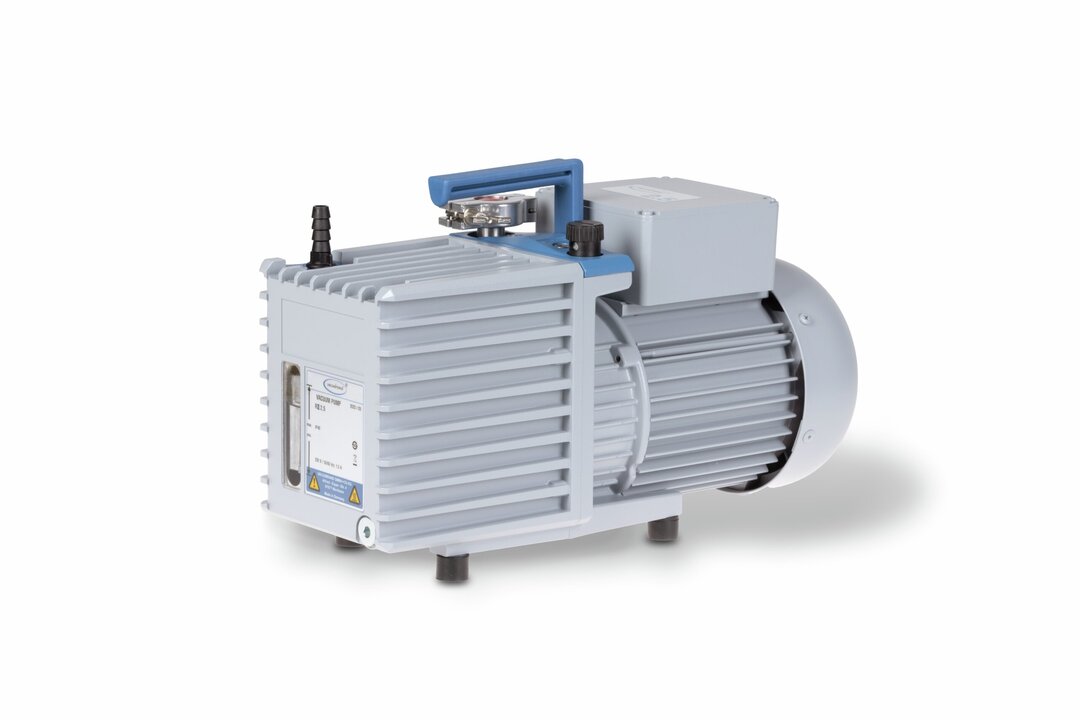

RZ 2.5Rotary vane pump

Overview

  • high flow rates even at vacuum levels approaching ultimate vacuum
  • very good ultimate vacuum even with gas ballast
  • vacuum-tight at switch-off; external anti-suckback valve not needed
  • large oil volume: Long intervals between oil changes
  • ease of maintenance due to telescopic design

Ultimate vacuum

2 x 10-3 mbar

Ultimate vacuum with gas ballast

1 x 10-2 mbar

Max. pumping speed 50 Hz

2.3 m3/h

SKU
20798122
Upon Request ₹286,000.00

Inquire

Rotary vane pump in action

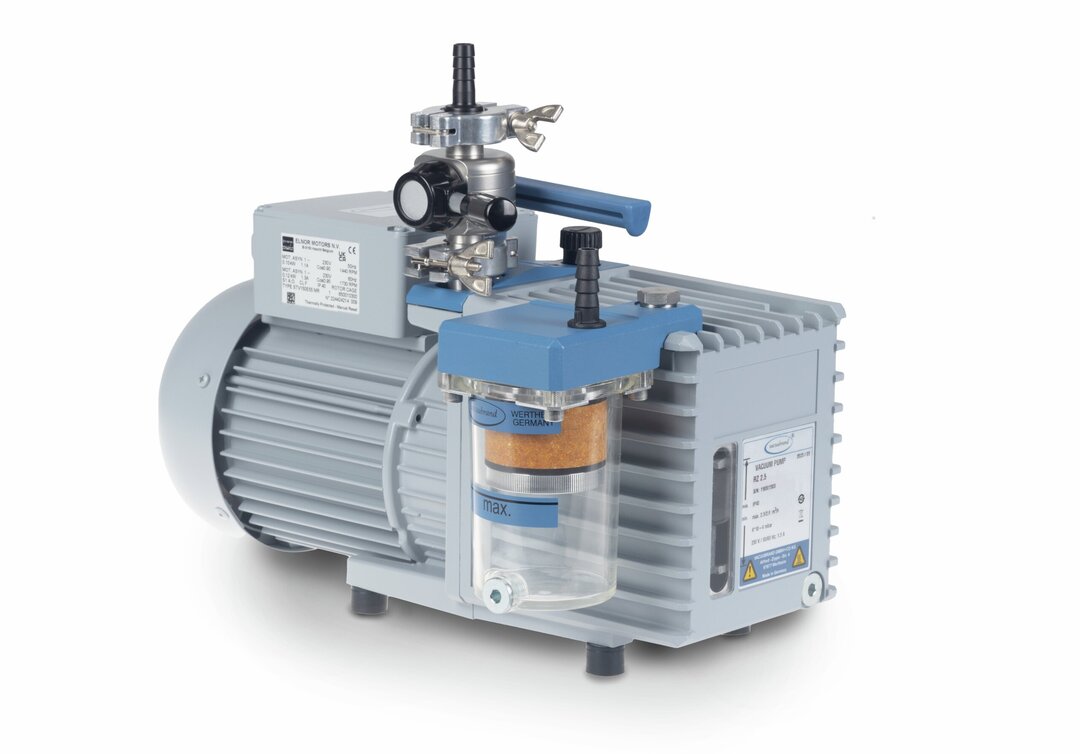

The one-stage RE 2.5 and two-stage RZ 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. The RZ 2.5 is also available combined with the oil mist filter (FO) and the VS 16 valve as a package. Typical applications are lyophilization, fine vacuum distillation and evacuation of small volumes, e.g., for utilization of µ-focus x-ray tubes or filling with pure gases.


Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz 2.3 m3/h Select diagram
Max. pumping speed 60 Hz 1.65 cfm Select diagram
Ultimate partial vacuum (abs.) without gas ballast 4 x 10-4 mbar
Ultimate vacuum 2 x 10-3 mbar / 1.5 x 10-3 torr
Ultimate vacuum with gas ballast 1 x 10-2 mbar / 0.75 x 10-2 torr
Number of stages 2
Lower ambient temperature (operation) 12 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Oil capacity (B-Oil) min. 0.36 l
Oil capacity (B-Oil) max. 0.84 l
Inlet connection Small flange KF DN 16 / hose nozzle DN 10 mm
Outlet connection Hose nozzle DN 8-10 mm
Rated motor power 0.1 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 390 mm
Dimension B in mm 156 mm
Dimension H in mm 240 mm
Weight 14.2 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 48 dBA
NRTL certification No
Items supplied Pump oil filled and completely mounted, ready for use, with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

Rotary vane pump RZ 2.5, two stage,small flange with hose nozzle DN 10 mmfor inlet, 230 V / 50-60 Hz,UK/IN mains cable***Replaces item number 20698122***
RZ 2.5 Rotary vane pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 6 MB 6 MB 6.2 MB 5.9 MB 5.9 MB 5.9 MB 5.9 MB 5.9 MB 5.9 MB 5.8 MB 5.9 MB 5.9 MB 5.9 MB 6.1 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download Download
Brochure
Brochure PDF 2.1 MB 2 MB
Download Download

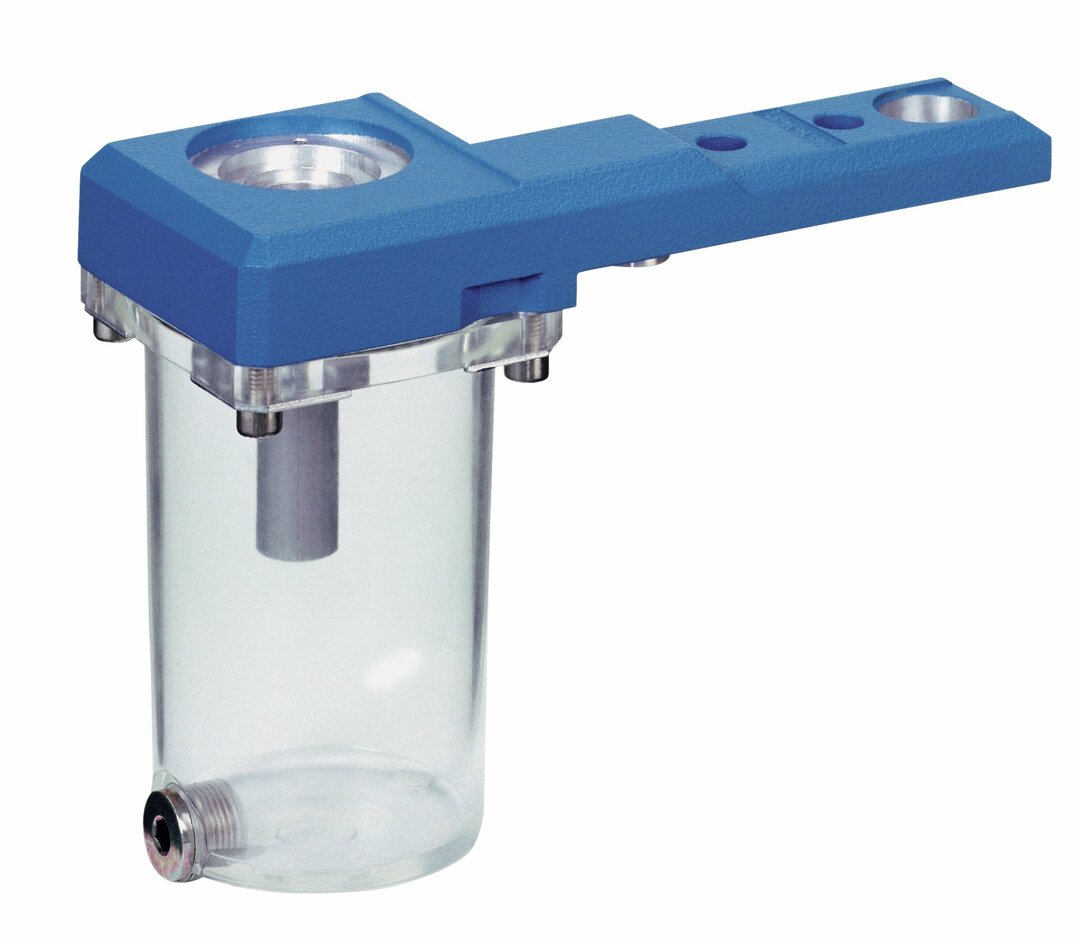

Optional accessories

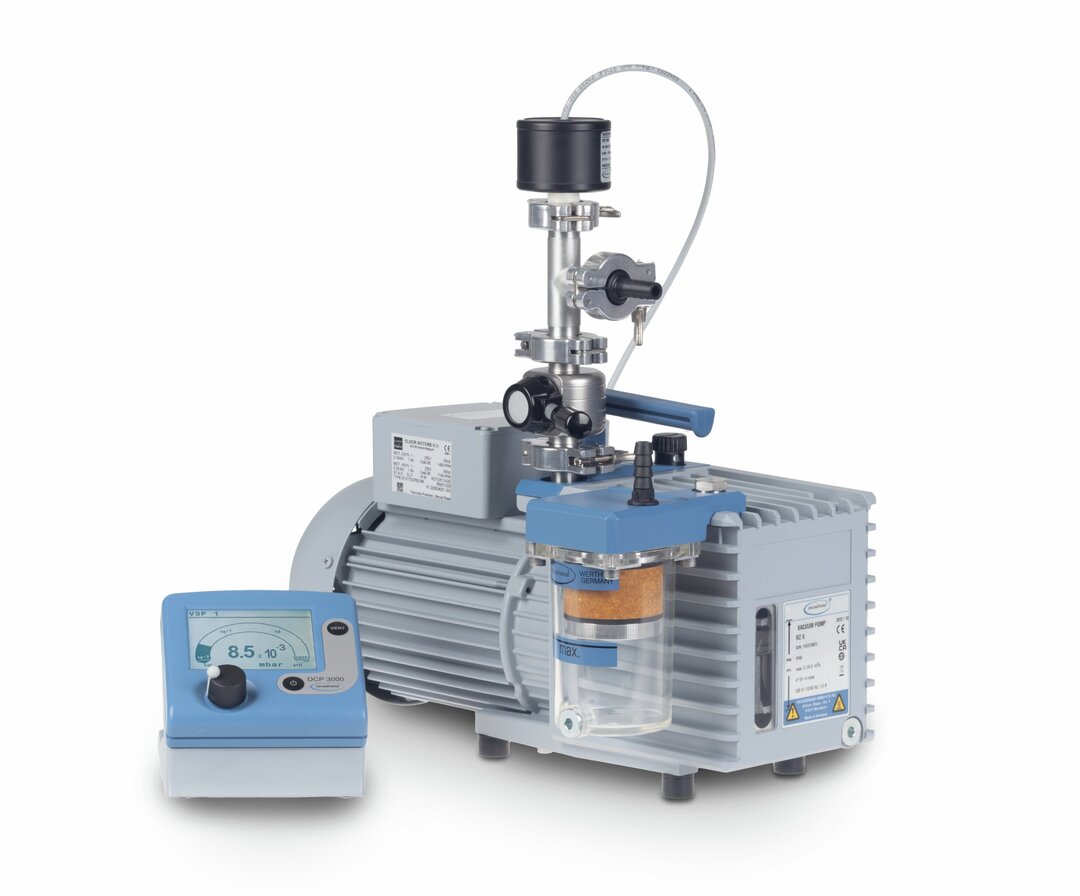

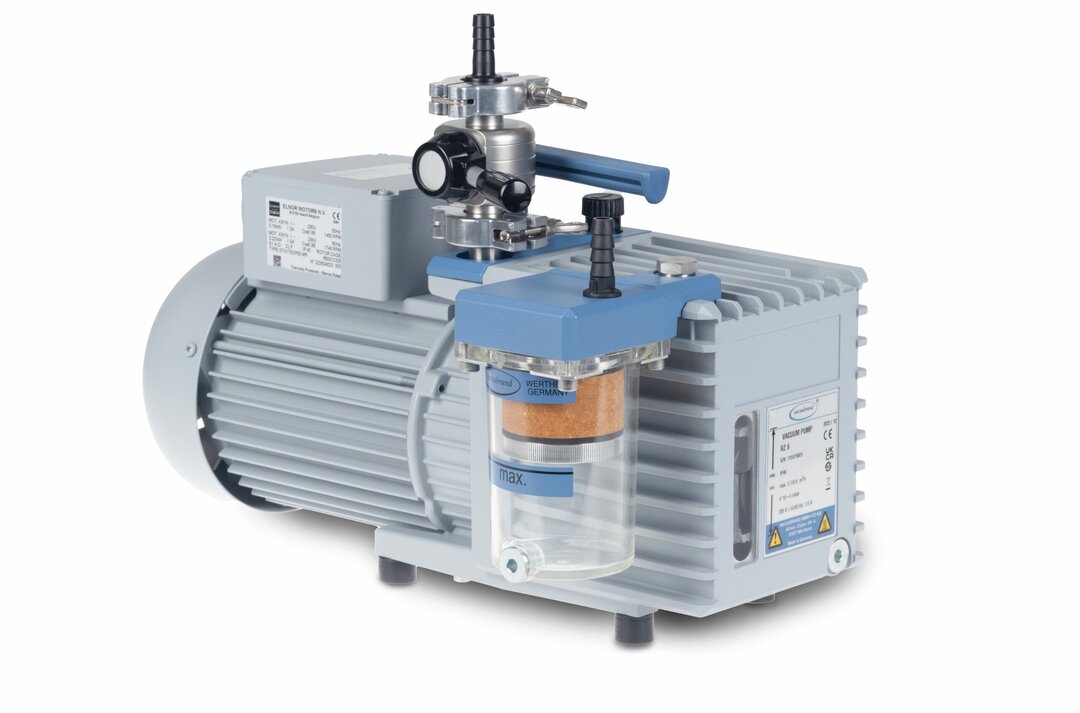

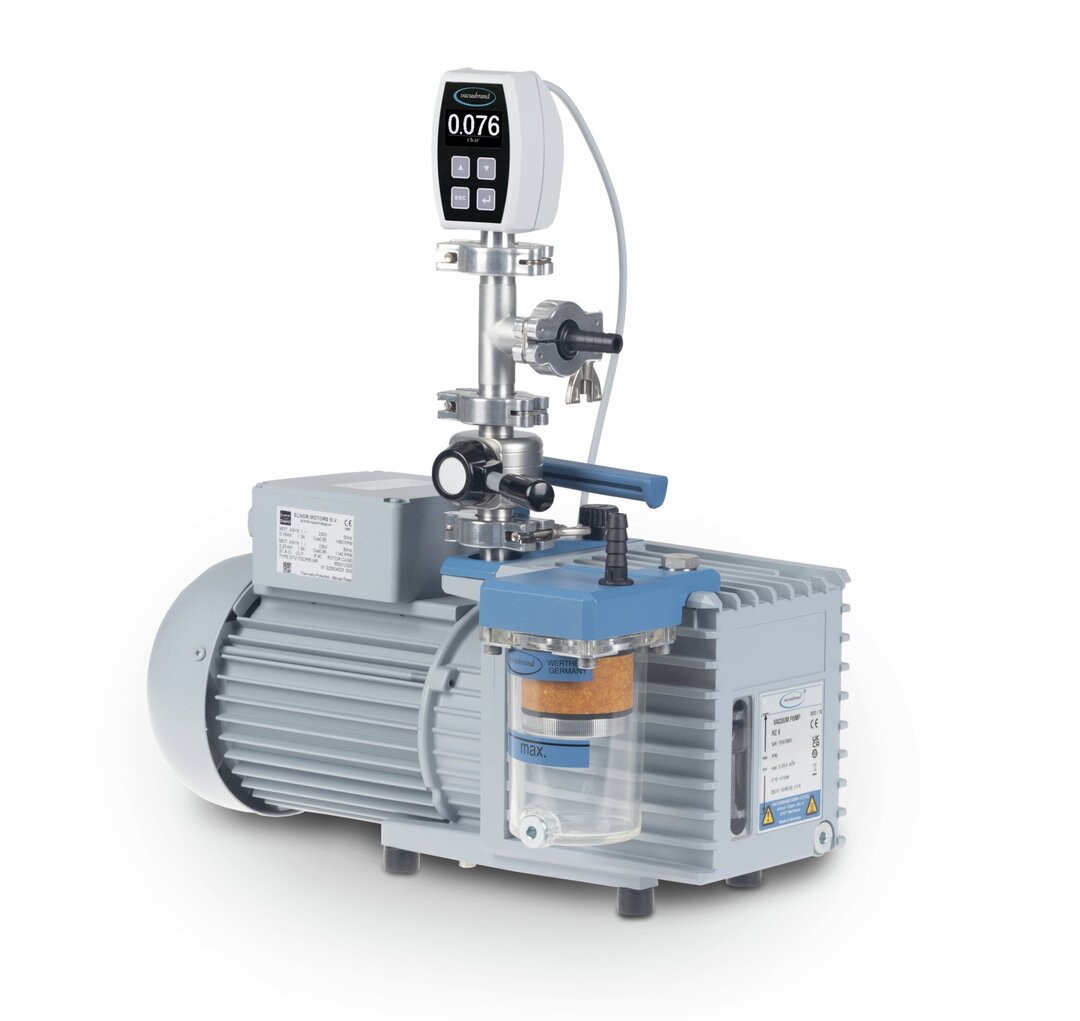

Related Products
