BVC professionalFluid aspiration system

Overview

  • with all the advantages of the BVC control
  • non-contact sensor for electronic monitoring of the liquid level in the collection bottle
  • disinfection routine for the suction tubing for drawing in disinfectant after switching off the pump

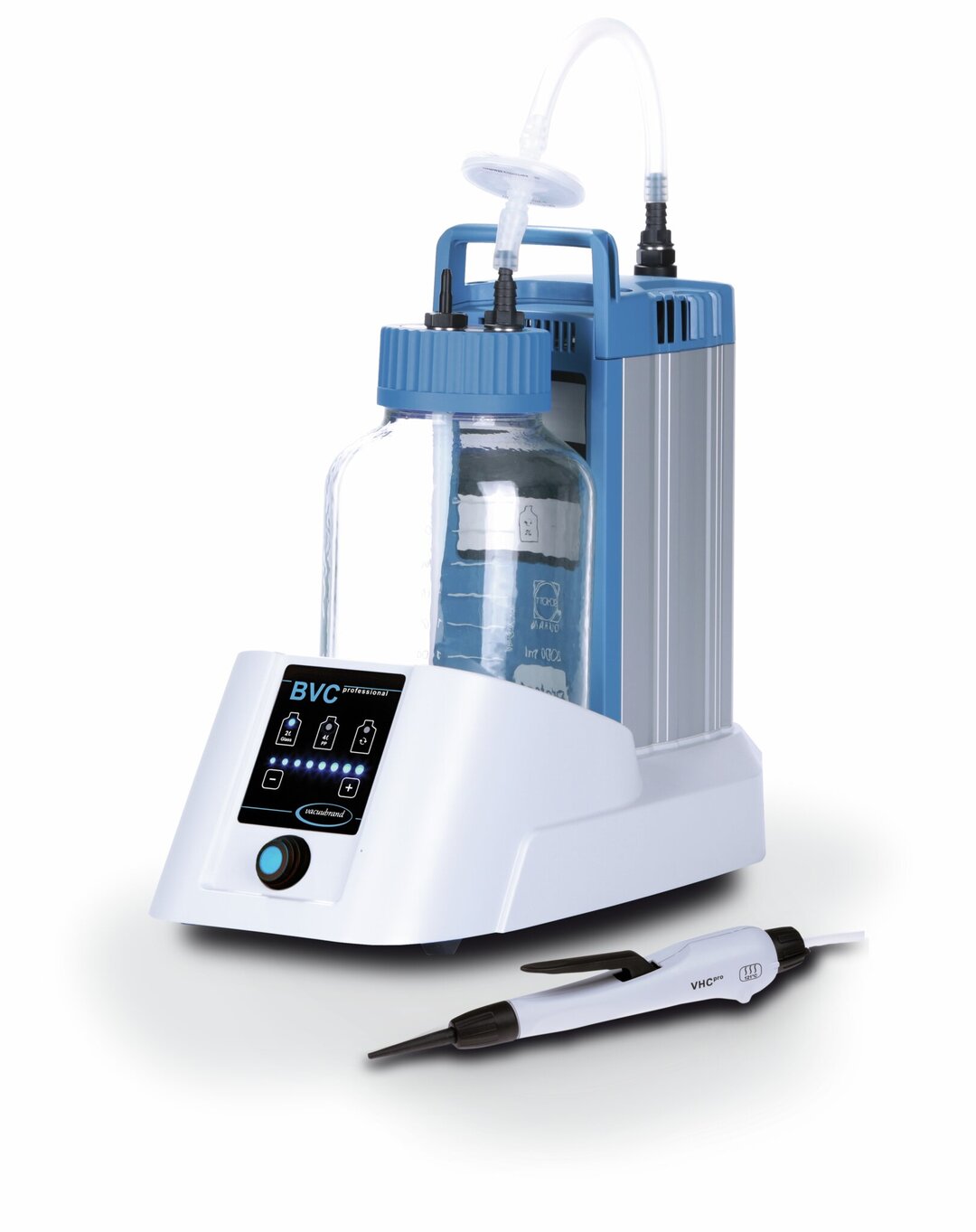

  • self-closing quick couplings (as accessory to the BVC professional G) for convenient and safe bottle change, e.g., for work with biohazards
  • for professional work and a perfect fit for required safety protocols
SKU
20727402
Upon Request ₹310,700.00

Inquire

Fluid aspiration system in action

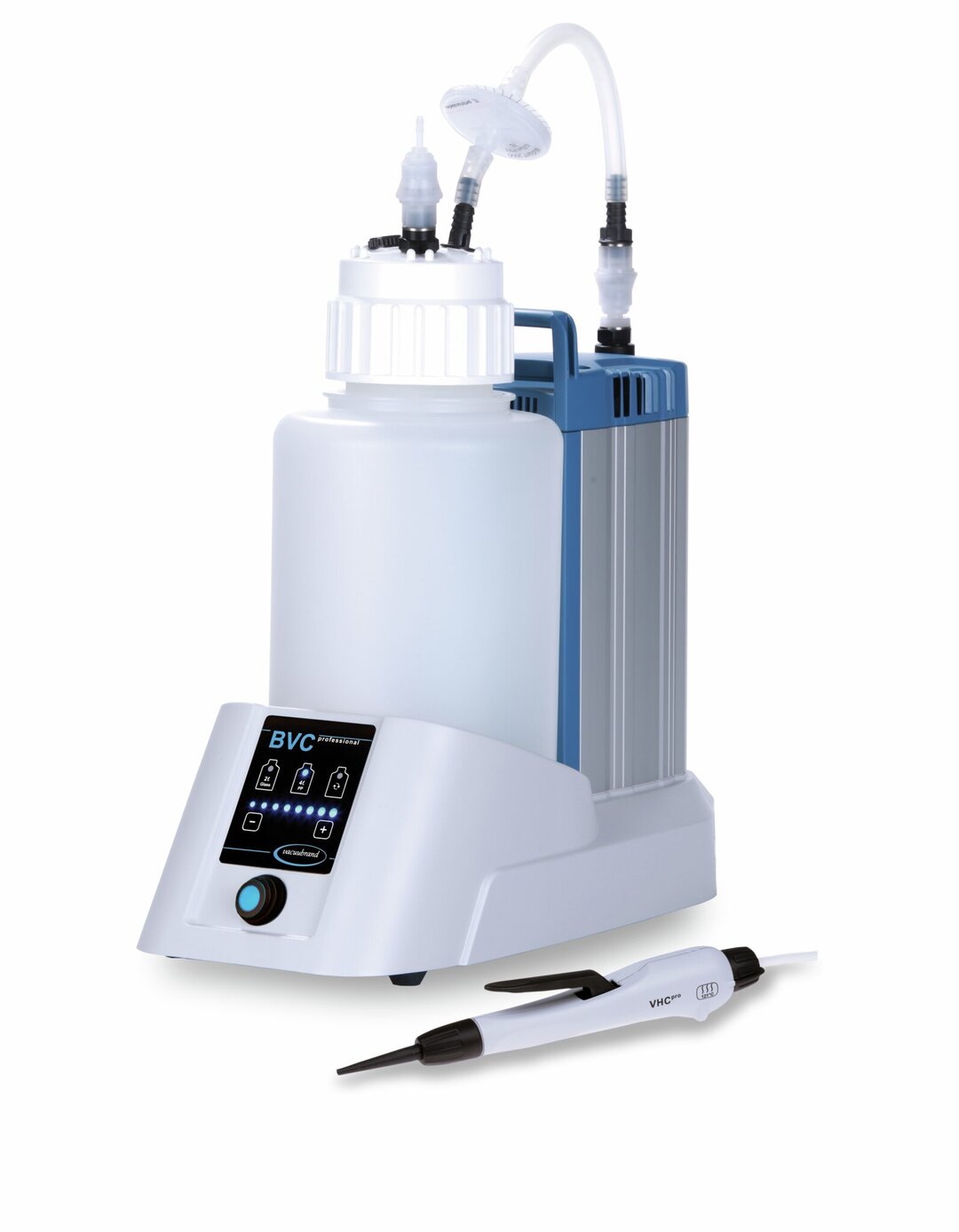

The BioChem-VacuuCenter BVC professional serves for aspiration and disposal of biological fluids, providing outstanding levels of comfort and safety for working with biological and biohazardous materials. A non-contact sensor monitors the liquid level in the collection bottle electronically and prevents overfilling. A disinfection routine allows the suction of disinfectants through aspiration hand set and tubing after switching off the pump, and so supports demanding safety protocols. The BVC professional with 4l PP bottle with self-closing quick couplings minimizes risk in transporting hazardous waste and of contamination in the workplace. The version with coated 2l borosilicate glass bottle allows you to work with aggressive disinfectants like chlorine bleach.


Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz 0.7 m3/h (Vacuum pump)
Max. pumping speed 60 Hz 0.5 cfm (Vacuum pump)
Ultimate vacuum 150 mbar / 112 torr
Vacuum controller Touchpanel
Control range 150 - 850 mbar (adjustable)
Collection bottle 4l Polypropylene
Max. back pressure (abs.) 1.1 bar
Inlet connection Suction controller
Outlet connection Hose nozzle DN 8 mm / silencer
Rated motor power 0.04 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Weight 7.7 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 49 dBA
NRTL certification No
Items supplied Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, non-contact liquid level sensor, quick couplings (4l PP version), aspiration hand set VHCpro and protection filter, ready for use with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz

Downloads

BioChem-VacuuCenter BVC professional,with 4l bottle made of PP,230 V / 50-60 Hz, UK/IN mains cable
BVC professional Fluid aspiration system
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 6.4 MB 6.5 MB 6.4 MB 6.4 MB 6.5 MB 6.4 MB 6.4 MB 6.4 MB 6.8 MB 6.1 MB 6.4 MB
Download Download Download Download Download Download Download Download Download Download Download
Brochure
Brochure PDF 1.4 MB 1.4 MB
Download Download
