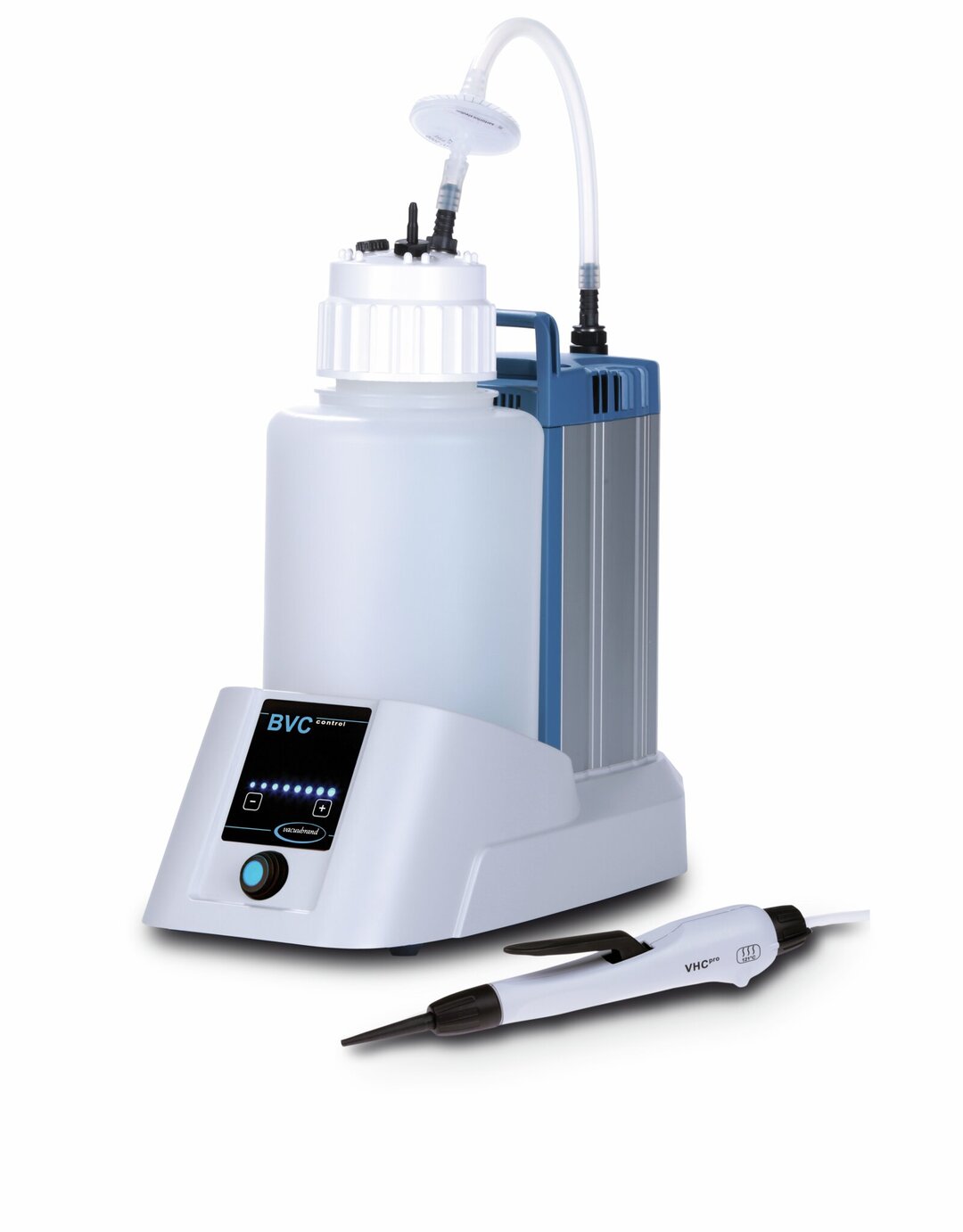

BVC controlFluid aspiration system

Overview

  • powerful and long-lasting chemistry diaphragm pump for universal economical use
  • extremely compact, space saving and low noise and thus the ideal tool in the workplace
  • easy operation due to electronically adjustable suction power via touch panel, for strong or sensitive suction
  • autoclavable collection bottle designed to reduce aero­sol and foam formation; with hydrophobic protection filter 0.2 µm, autoclavable quick-couplings available as accessory
  • ready to accept a second aspiration hand controller (VHCpro) to support two users
SKU
20727202
Upon Request ₹223,650.00

Inquire

Fluid aspiration system in action

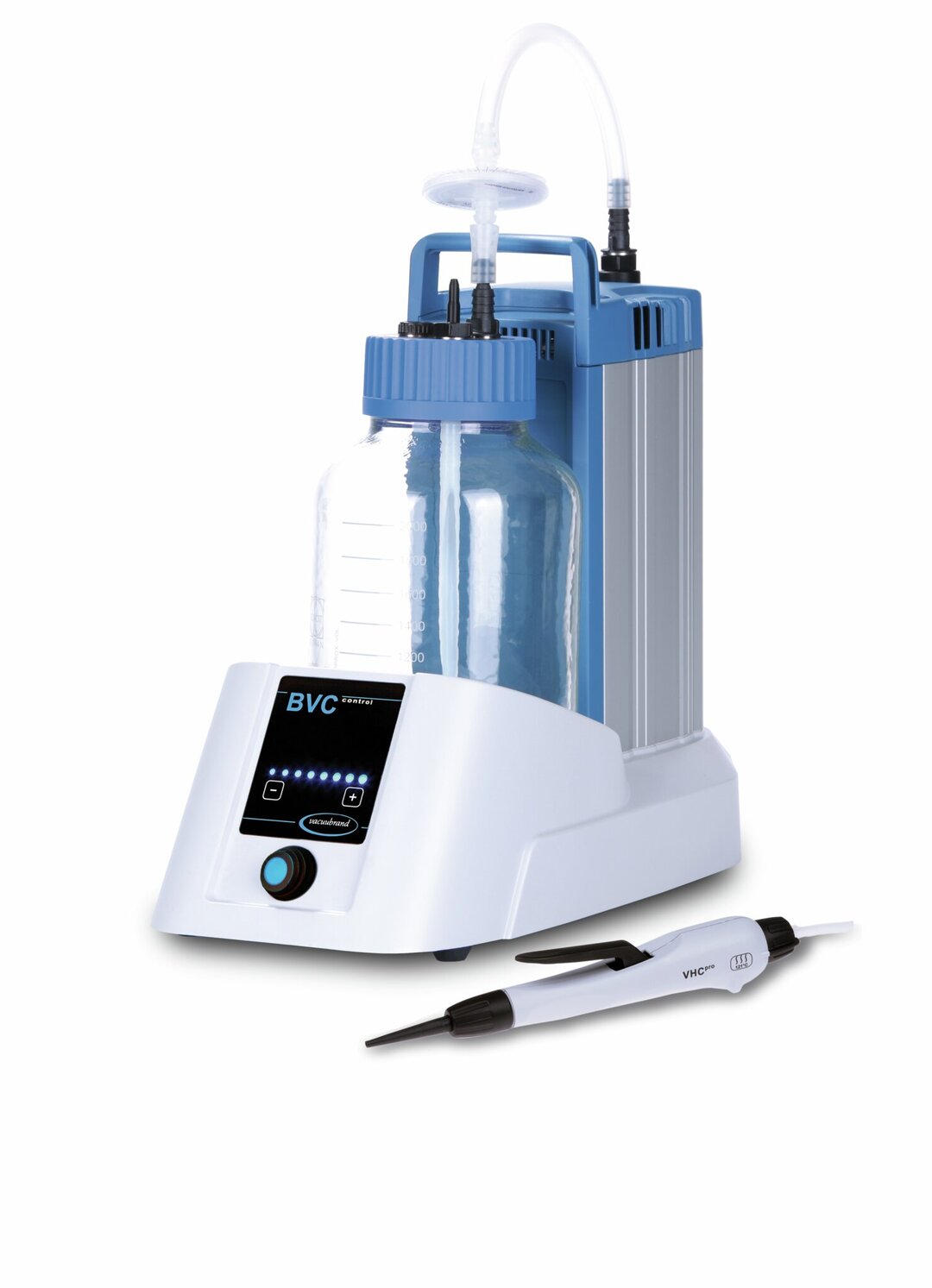

The BioChem-VacuuCenter BVC control serves for efficient and convenient aspiration of supernatants. The vacuum level - and thus the suction force - is exactly adjustable by the electronic touch panel and allows a sensitive and reproducible operation. The chemically resistant diaphragm vacuum pump is automatically turned on and off as needed, which reduces the low noise level even further. The BVC control is available in two complete equipment options with different collection flasks. The 2l borosilicate glass bottle with a protective coating has a very high chemical resistance. For larger amounts of liquids the 4l bottle of unbreakable polypropylene (PP) is used. The smooth surfaces allow an easy cleaning of the systems.


Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz 0.7 m3/h (Vacuum pump)
Max. pumping speed 60 Hz 0.5 cfm (Vacuum pump)
Ultimate vacuum 150 mbar / 112 torr
Vacuum controller Touchpanel
Control range 150 - 850 mbar (adjustable)
Collection bottle 4l Polypropylene
Max. back pressure (abs.) 1.1 bar
Inlet connection Suction controller
Outlet connection Hose nozzle DN 8 mm / silencer
Rated motor power 0.04 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Weight 7.7 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 49 dBA
NRTL certification No
Items supplied Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, aspiration hand set VHCpro and protection filter, ready for use with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz

Downloads

BioChem-VacuuCenter BVC control,with 4l bottle made of PP,230 V / 50-60 Hz, UK/IN mains cable
BVC control Fluid aspiration system
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 6.4 MB 6.5 MB 6.4 MB 6.4 MB 6.5 MB 6.4 MB 6.4 MB 6.4 MB 6.2 MB 6.8 MB 6.1 MB 6.4 MB
Download Download Download Download Download Download Download Download Download Download Download Download
Brochure
Brochure PDF 1.4 MB 1.4 MB
Download Download
