Product description

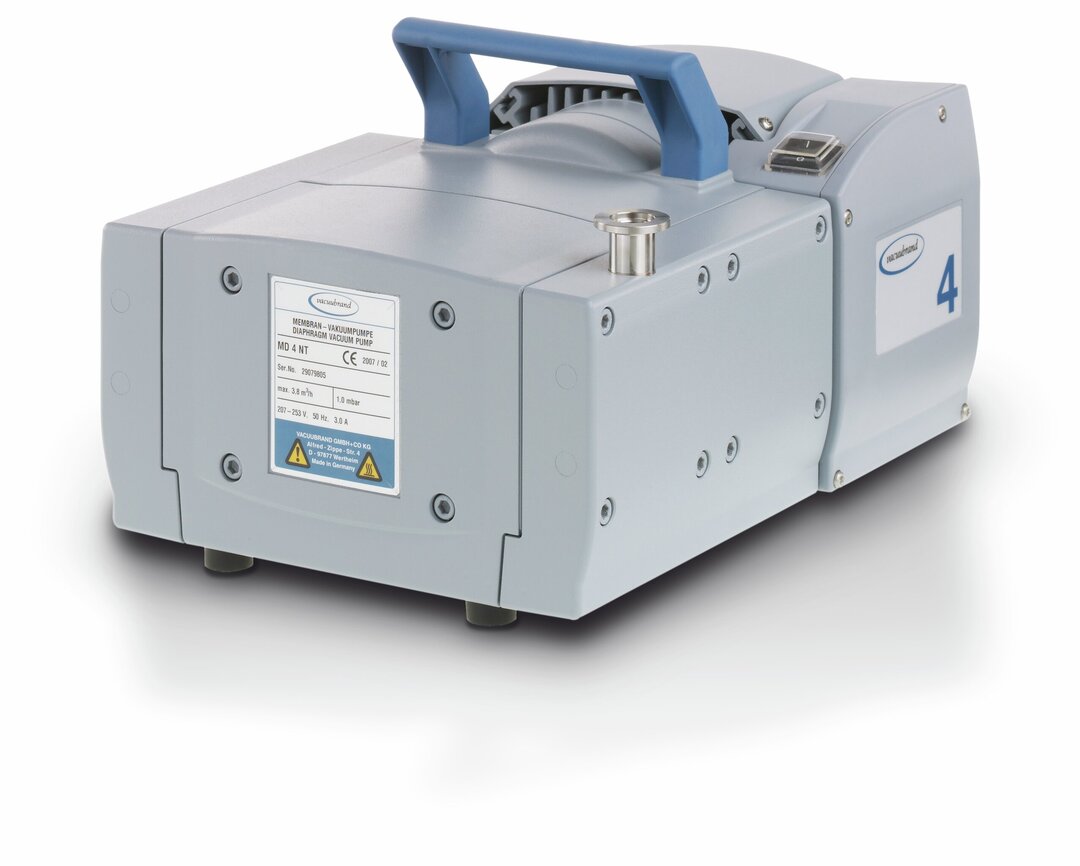

MD 4 NT

Diaphragm pump

These three-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of non-corrosive gases. They reach an excellent ultimate vacuum of 1 mbar. All parts in contact with pumped gases and vapors are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of applications with non-corrosive gases. The new NT-series provides whisper quiet and ultra-low vibration operation, high leak tightness and improved performance. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life.

Information on the disposal of old devices »

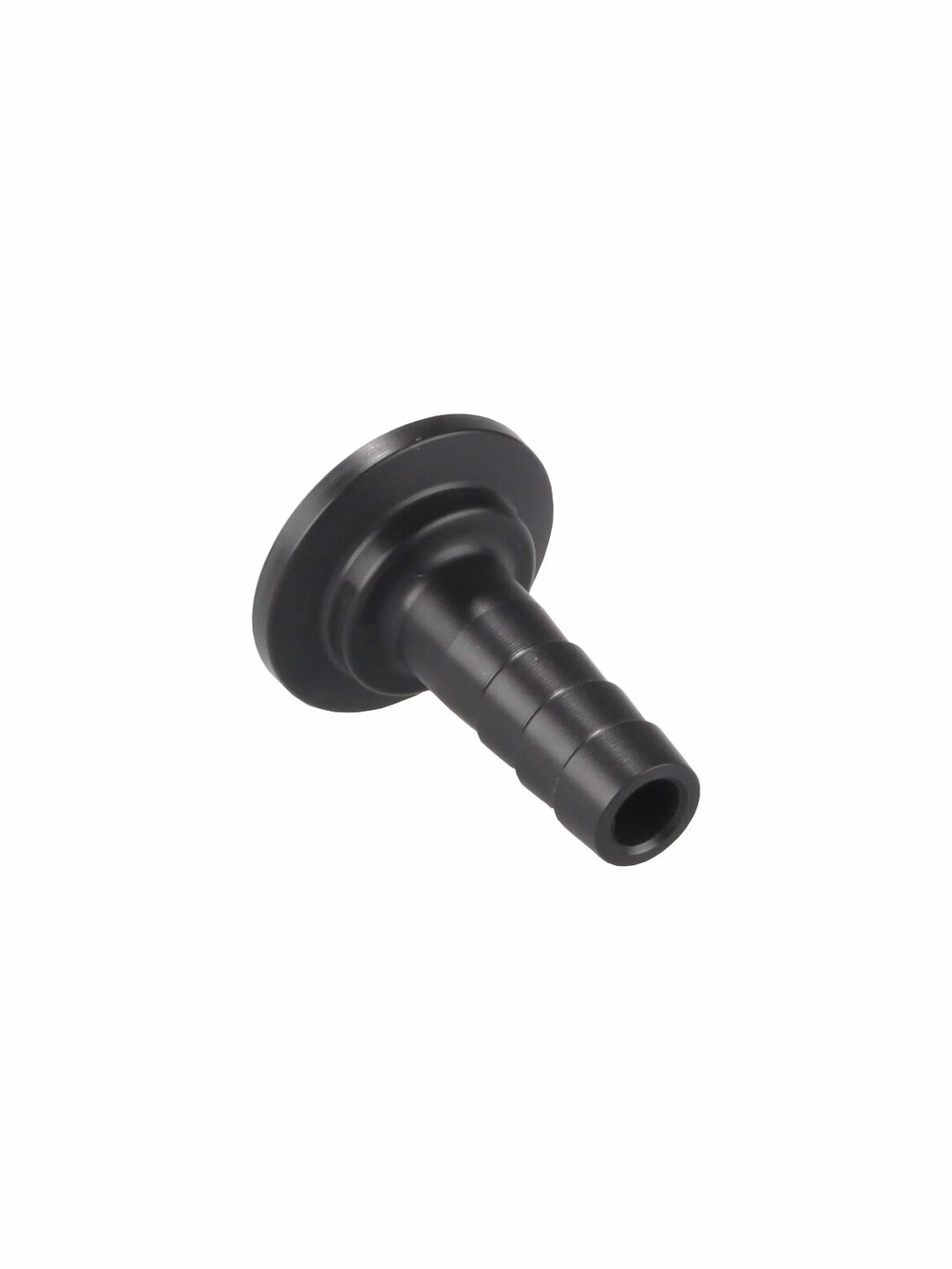

Accessories and spare parts
DN 8 mm Vacuum tubing transparent
20686061
₹4,390.00

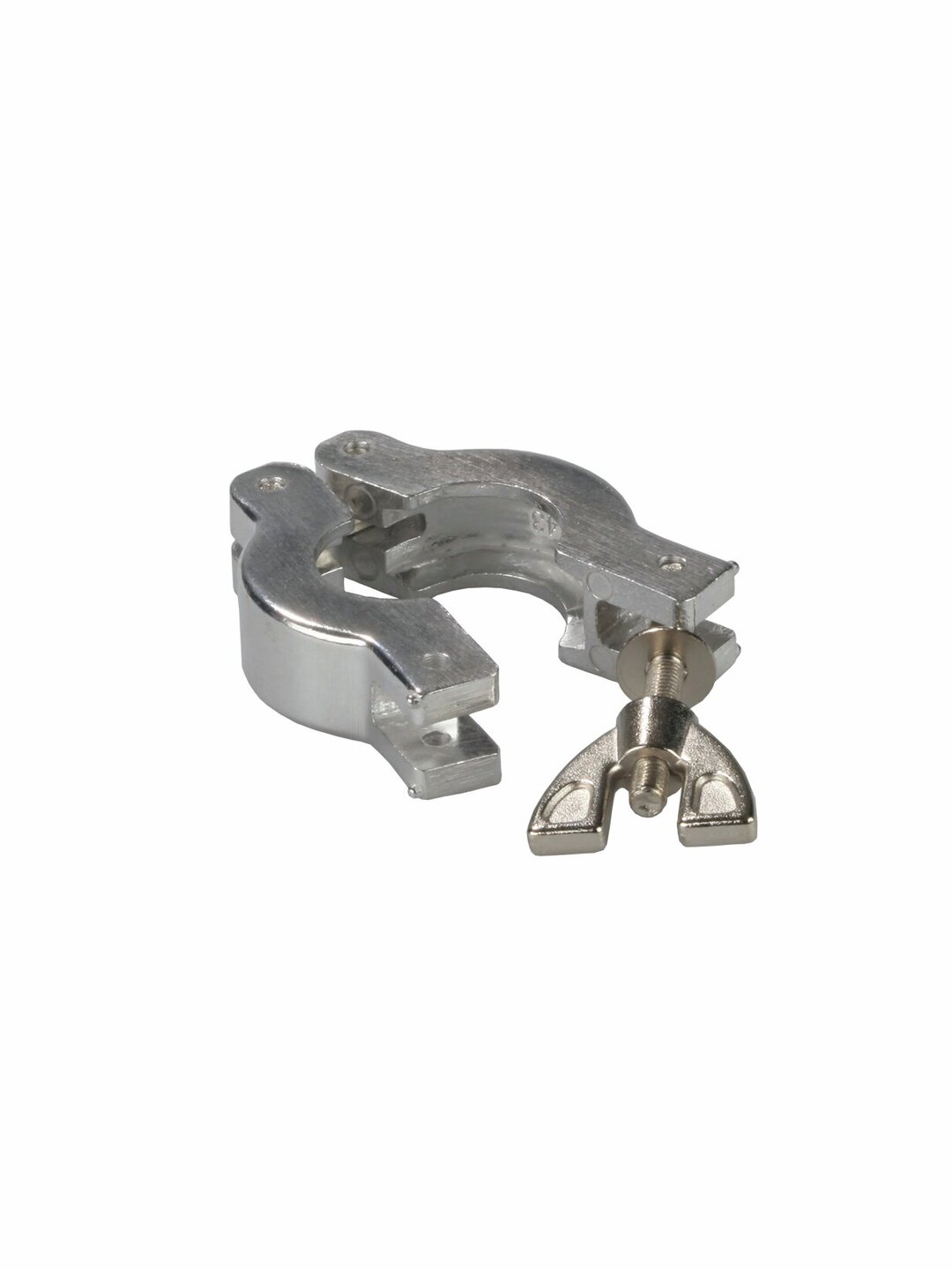

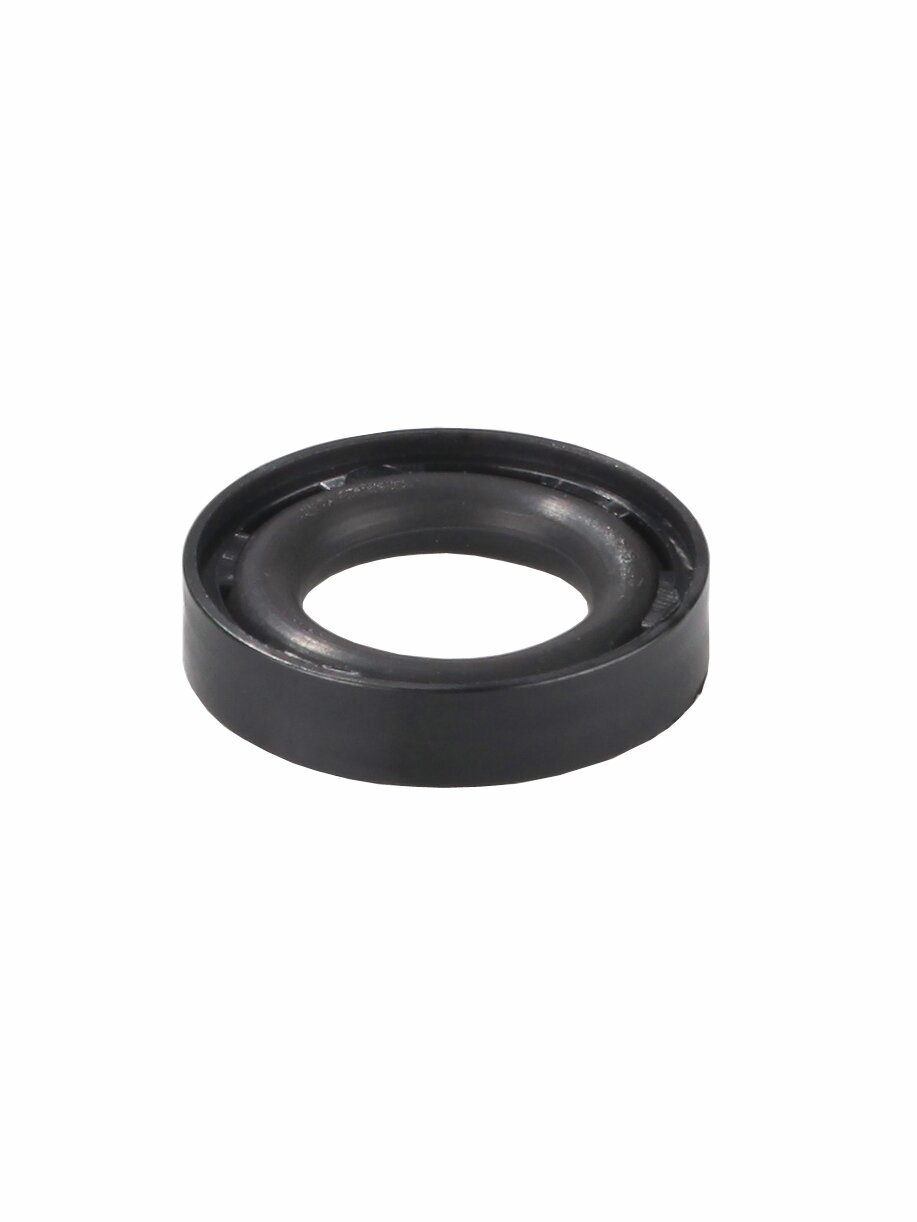

KF DN 10/16 Clamping ring for small flange
20660000
Technical Data

Technical data and graphs

Item number 20736002
Max. pumping speed 50 Hz 3.8 m³/h
Max. pumping speed 60 Hz 2.5 cfm
Ultimate vacuum 1 mbar
Ultimate vacuum in torr 0.75 torr
Number of heads 4
Number of stages 3
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. outlet pressure (abs.) 1.1 bar
Inlet connection Small flange KF DN 16
Outlet connection Silencer / G1/4"
Rated motor power 0.25 kW
Rated motor speed at 50/60 Hz 1500/1800 min⁻¹
Protection class IEC 60529 IP 40
Dimension L in mm 328 mm
Dimension W in mm 239 mm
Dimension H in mm 198 mm
Weight 16.4 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 45 dBA
ATEX conformity II 3/- G Ex h IIC T3 Gc X Internal Atm. only
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz
Items supplied
Pump completely mounted, ready for use, with manual.
Applications

Application examples

Fore vacuum for turbomolecular pumps
Fore vacuum for turbomolecular pumps

Fore vacuum for turbomolecular pumps

The fore-vacuum plays a decisive role in determining the ultimate vacuum (the maximum achievable vacuum) and purity in HV/UHV systems. Several factors are critical here: The fore-vacuum pump must be compatible with the maximum permissible fore-vacuum of the turbomolecular pump; its pumping speed determines both the pumping time and the maximum gas flow rate that can be handled during continuous operation. Crucial for a clean and hydrocarbon-free vacuum, especially in physics applications: Our oil-free diaphragm pumps are suitable down to approx. 1 mbar, and the oil-free screw pump VACUU·PURE down to 10⁻³ mbar. They prevent contamination and wear and tear and ensure a constant pumping speed for uninterrupted operation.

Fore vacuum for turbomolecular pumps
