MD 1C +AK+EKChemistry vacuum system

Overview

  • outstanding chemical resistance and superior vapor tolerance
  • exceptionally high performance even at low vacuum
  • excellent ultimate vacuum even with gas ballast
  • whisper quiet and ultra low vibration
  • excellent environmental friendliness due to efficient solvent recovery

Ultimate vacuum

2 mbar

Ultimate vacuum with gas ballast

4 mbar

Max. pumping speed 50 Hz

1.3 m3/h

SKU
20696622
Upon Request ₹459,690.00

Inquire

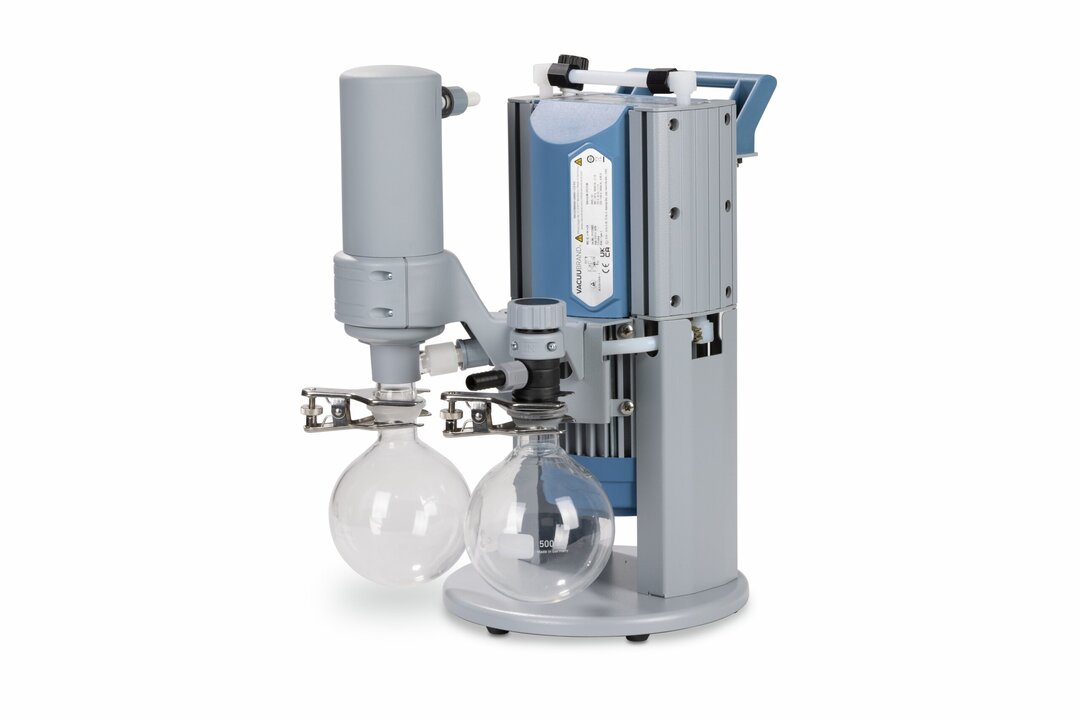

Chemistry vacuum system in action

This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. This system is usable for increased vacuum requirements with high boiling solvents and often replaces rotary vane pumps. Typical applications are rotary evaporators and vacuum drying ovens. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.


Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz 1.3 m3/h Select diagram
Max. pumping speed 60 Hz 0.88 cfm Select diagram
Ultimate vacuum 2 mbar / 1.5 torr
Ultimate vacuum with gas ballast 4 mbar / 3 torr
Number of heads 4
Number of stages 3
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection Hose nozzle DN 8-10 mm
Outlet connection Hose nozzle DN 8-10 mm
Coolant connection 2 x hose nozzle DN 6-8 mm
Rated motor power 0.08 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 316 mm
Dimension B in mm 239 mm
Dimension H in mm 405 mm
Weight 11 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 45 dBA
ATEX conformity II 3/- G Ex h IIC T3 Gc X Internal Atm. only
NRTL certification Yes
Items supplied Pumping unit completely mounted, ready for use, with manual.
Rated mains voltage range 1 220-230 V
Rated mains voltage range 2 100-115 V
Rated mains voltage range 3 120 V
Mains frequency 1 50-60 Hz
Mains frequency 2 50-60 Hz
Mains frequency 3 60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

Chemistry vacuum system MD 1C + AK + EK,certification (NRTL): C/US,100-115 V / 50-60 Hz, 120 V / 60 Hz,220-230 V / 50-60 Hz, UK/IN power cord
MD 1C +AK+EK Chemistry vacuum system
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 6.7 MB 7.7 MB 6.8 MB 6.8 MB 6.8 MB 12.2 MB
Download Download Download Download Download Download
Brochure
Brochure PDF 2 MB 2 MB
Download Download
