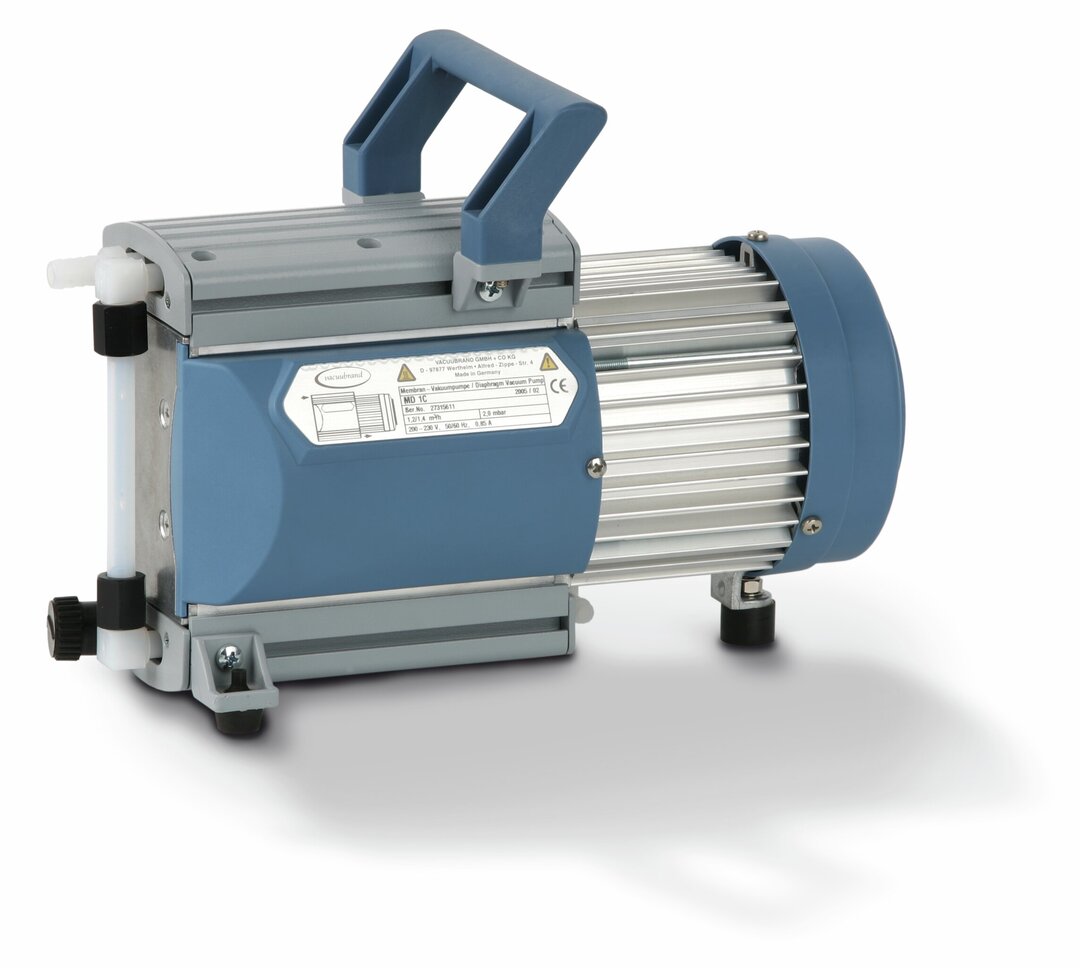

MD 1CChemistry diaphragm pump

Overview

  • outstanding chemical resistance and superior vapor tolerance
  • exceptionally high performance even at low vacuum
  • excellent ultimate vacuum even with gas ballast
  • whisper quiet and ultra low vibration
  • proven long diaphragm life, maintenance-free drive system

Ultimate vacuum

2 mbar

Ultimate vacuum with gas ballast

4 mbar

Max. pumping speed 50 Hz

1.3 m3/h

SKU
20696602
Upon Request ₹325,490.00

Inquire

Chemistry diaphragm pump in action

Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet high requirements regarding ultimate vacuum. The three-stage construction provides the advantageous combination of high pumping speed and deep ultimate vacuum in a pump with a very small footprint. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The MD 1C with gas ballast valve is optimally prepared for pumping easily condensable vapors (high boiling solvents). Three-stage chemistry diaphragm pumps are an excellent solution for applications involving corrosive gases and vapors at high vacuum requirements. Typical applications are vacuum generation at rotary evaporators, vacuum concentrators and many other laboratory applications. Due to their excellent ultimate vacuum they are the ideal solution for evaporation of high boiling solvents even with gas ballast. The MD 1C pump is the heart of a whole line of reliable chemistry pumping units.


Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz 1.3 m3/h Select diagram
Max. pumping speed 60 Hz 0.88 cfm Select diagram
Ultimate vacuum 2 mbar / 1.5 torr
Ultimate vacuum with gas ballast 4 mbar / 3 torr
Number of heads 4
Number of stages 3
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection Hose nozzle DN 8-10 mm
Outlet connection Hose nozzle DN 8 mm
Rated motor power 0.08 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 338 mm
Dimension B in mm 142 mm
Dimension H in mm 223 mm
Weight 7.9 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 41 dBA
ATEX conformity II 3/- G Ex h IIC T3 Gc X Internal Atm. only
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 220-230 V
Rated mains voltage range 2 100-115 V
Rated mains voltage range 3 120 V
Mains frequency 1 50-60 Hz
Mains frequency 2 50-60 Hz
Mains frequency 3 60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

Chemistry diaphragm pump MD 1C, three stage,certification (NRTL): C/US,100-115 V / 50-60 Hz, 120 V / 60 Hz,220-230 V / 50-60 Hz, UK/IN power cord
MD 1C Chemistry diaphragm pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 6.7 MB 7.7 MB 6.8 MB 12.3 MB 6.8 MB 6.8 MB 12.2 MB
Download Download Download Download Download Download Download
Brochure
Brochure PDF 2 MB 2 MB
Download Download
